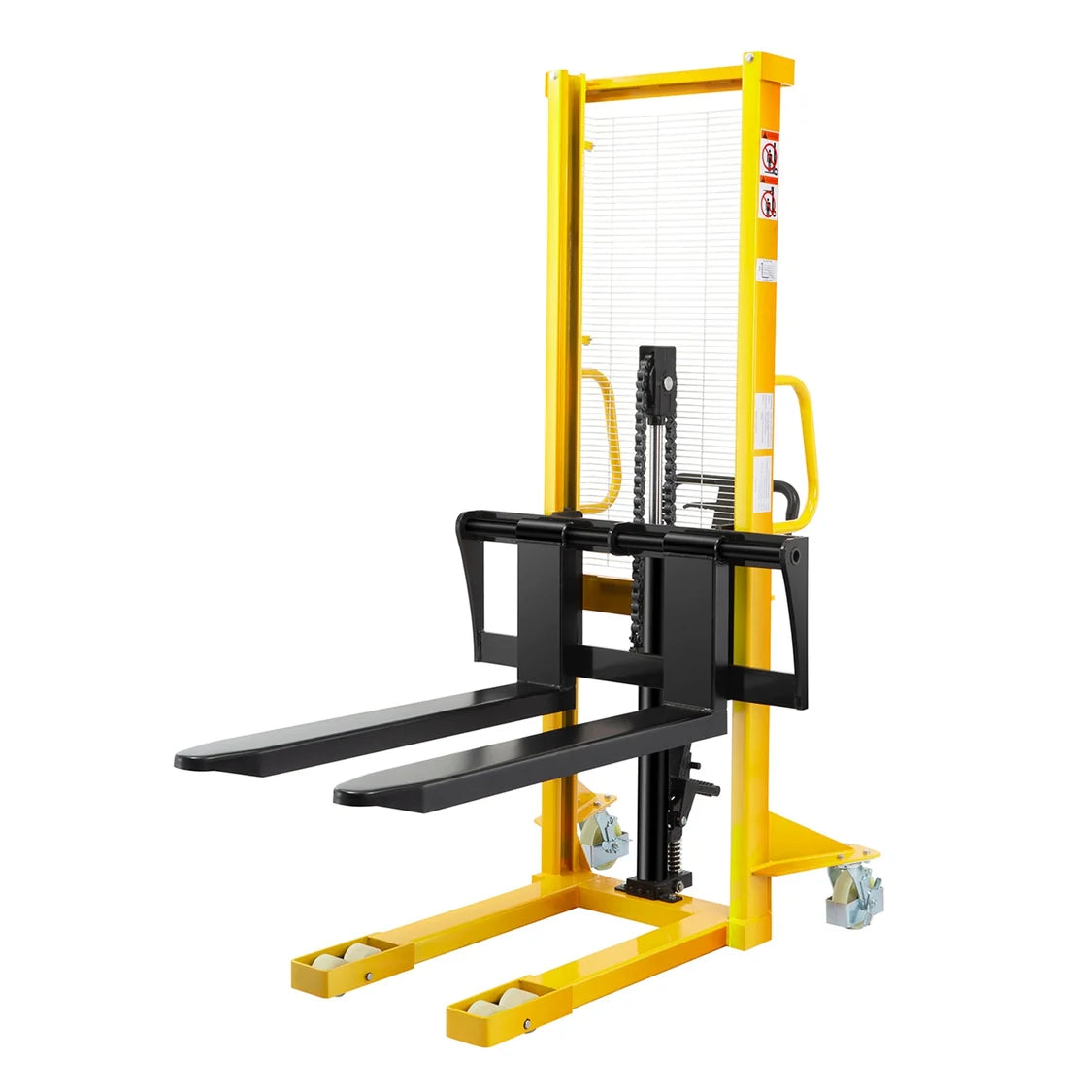

Arrow Manual Pallet Stacker, 777015 | 2,200 Lbs Capacity, 63" Lift Height, Fixed Legs 1 / 5
2,200 lbs Load Capacity
42" L × 11.6–36.6" W × 2.4" Thick Fork Dimensions
66.1" Overall Length
63" Max Lifting Height

5Seconds Brand·SKU 777015

Arrow Manual Pallet Stacker, 777015 | 2,200 Lbs Capacity, 63" Lift Height, Fixed Legs

$1,579.99 ea.
  • Load Capacity: 2,200 lbs
  • Fork Dimensions: 42" L × 11.6–36.6" W × 2.4" Thick
  • Overall Length: 66.1"
  • Max Lifting Height: 63"
Processing time: ships in 2 business days
Spec sheet Warranty
Available for pick-up

Specifications

Load Capacity 2,200 lbs
Fork Dimensions 42" L × 11.6–36.6" W × 2.4" Thick
Overall Length 66.1"
Max Lifting Height 63"
Turning Radius 49.6"
Load Center 19.7"
Aisle Width 80.6"
Inside Fork Width 0.4"–25.4"
Fork Lowered Height 3.5"
Overall Width 38.2"
Max Lifting Height 63"
Mast Height (Lowered/Extended) 81.9" / 81.9"
Wheel Type Dual Wheels
Fork Material Stamped Forks
Service Weight 566 lbs


5Seconds Heavy-Duty Manual Pallet Stacker


Standard mast and fork design

  • Designed with standard fork dimensions for compatibility with common U.S. pallet sizes.
  • Supports smooth stacking, lifting, and load handling across warehouse operations.

Fixed forks for stable handling

  • Fixed fork construction provides added strength and stability during lifting and transport.
  • Helps keep loads properly aligned for safer, more controlled handling.

Hand and foot lifting operation

  • Dual lifting controls allow operation by either hand or foot.
  • Gives operators added flexibility while helping reduce fatigue during repeated lifting tasks.

Compact design for versatile use

  • Compact frame and tight turning capability make it easier to maneuver in confined spaces.
  • Well suited for warehouses, workshops, loading areas, retail backrooms, and general material handling.


 See The 5Seconds Difference

Compared with a standard manual stacker, the 5Seconds Arrow Manual Pallet Stacker is built for heavier-duty material handling with a reinforced steel mast, fixed-leg design, and stable fork support for controlled lifting and stacking. With a 2,200 lbs load capacity and 63" lift height, it is well suited for warehouses, production areas, stockrooms, and industrial facilities that require dependable pallet handling and positioning throughout the workday.

Frequently asked questions

The stacker can handle loads up to 2,200 lbs, making it suitable for pallet lifting, positioning, and stacking in warehouses, workshops, and industrial environments.

The forks can be raised to a maximum height of 63 inches, allowing loads to be positioned on elevated work surfaces and storage areas

Yes. The stacker features adjustable forks, allowing the fork spacing to be changed to accommodate different compatible pallet and load sizes.

The stacker offers hand and foot-operated hydraulic lifting, giving operators flexible control while helping reduce effort during repeated lifting tasks
