1 / 10
4,400 lbs
Load Capacity
42" L × 9.5–38.1" W × 1.6" Thick
Fork Dimensions
48V / 450Ah
Battery
189"
Max Lifting Height
5Seconds·SKU 777050

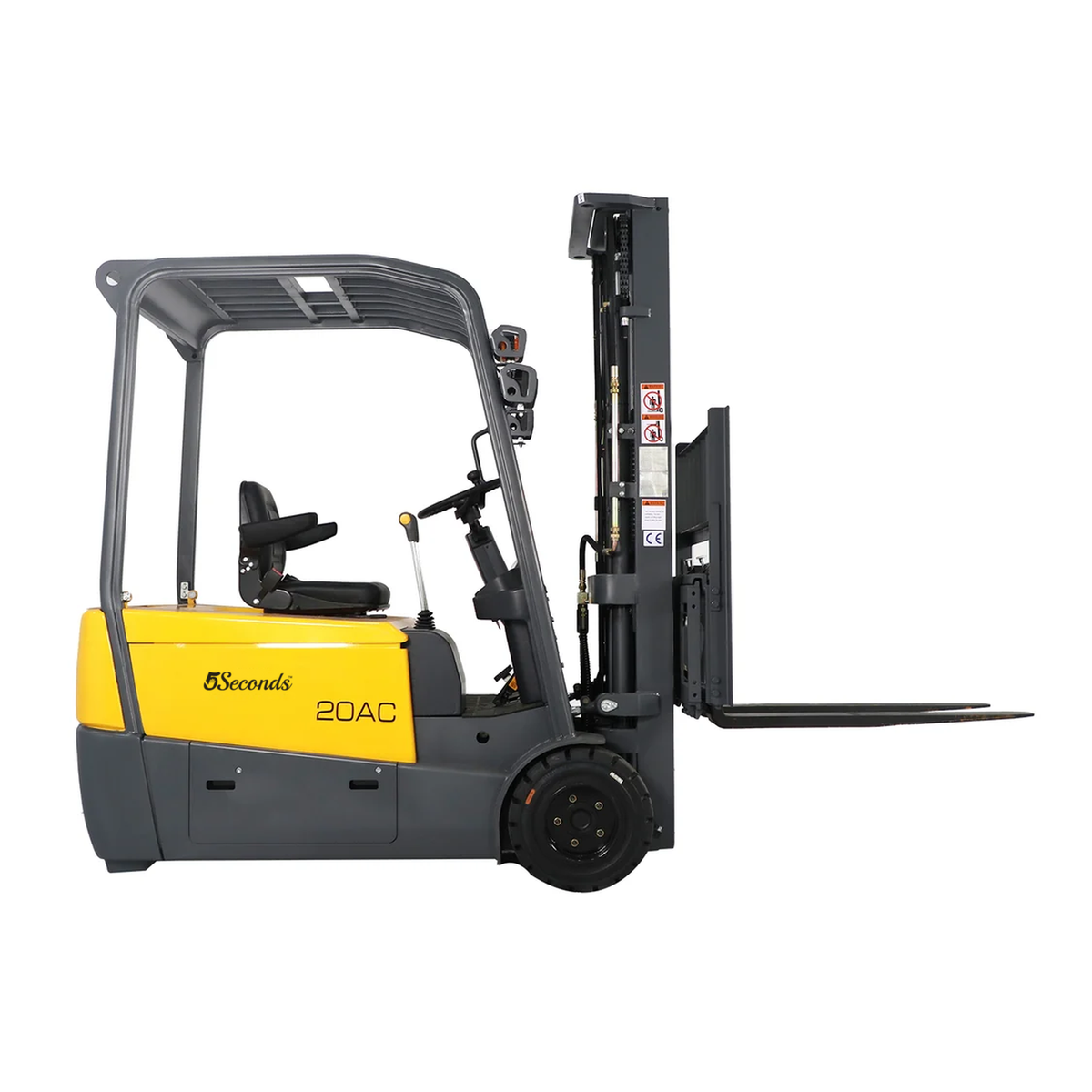

5Seconds - 3-Wheel Electric Forklift - 777050 | 4400 Lbs Capacity, 48V/450Ah Lithium Battery
- Load Capacity: 4,400 lbs
- Fork Dimensions: 42" L × 9.5–38.1" W × 1.6" Thick
- Battery: 48V / 450Ah
- Battery Type: Lithium
Specifications
Built for the job
HEAVY-DUTY 4,400 LB CAPACITY WITH 189" TRIPLEX FREE-LIFT MAST
Engineered for intense industrial pallet handling and multi-tier high-bay racking, this high-tonnage 3-wheel electric forklift handles full 4,400 lb payloads up to 189" (87" lowered mast / 211.4" extended). Its 3-stage full free-lift mast structure and factory-integrated hydraulic side shift allow pinpoint pallet alignment inside low-clearance shipping containers and tight rack beams without moving the truck.
HIGH-VOLTAGE 48V/450Ah LITHIUM SYSTEM WITH THERMAL HEATING FILM
Powered by a massive 48V / 450Ah lithium-ion battery engineered with an integrated heating film to maintain optimum thermal stability and discharge capacity in cold storage, freezer plants, and unheated winter warehouses. Paired with a heavy-duty 48V / 150A external fast charger (3-phase 220V input), it supports rapid turnaround opportunity charging across multi-shift warehouse schedules.
CURTIS AC CONTROLLER & REGENERATIVE BRAKING
Equipped with an advanced Curtis AC electronic control system that synchronizes drive traction and hydraulic pump performance. Automatic regenerative braking recovers kinetic energy into the battery during deceleration, delivering smooth foot-off braking while significantly reducing brake component wear and heat buildup.
AGILITY-FOCUSED 3-WHEEL ARCHITECTURE & 65" TURNING RADIUS
Combining a compact 45.1" chassis width with a dedicated rear-wheel steer axle, this forklift achieves an agile 65" turning radius and operates smoothly within 130" aisle configurations. Operators negotiate crowded staging lanes, tight dock aprons, and narrow warehouse corridors with ease.
WET DISC BRAKING & HEAVY-DUTY SOLID RUBBER TIRES
Built with industrial wet disc brakes that provide long-lasting, dust-sealed stopping power under punishing workloads. Tough solid rubber tires run puncture-free and cushion vibration across uneven concrete, bridge plates, dock levelers, and asphalt yard transitions.
PEDESTRIAN SAFETY BLUE LIGHTS & MULTI-VALVE ERGONOMICS
Enhanced with two rear/forward projection pedestrian blue safety warning lights that cast high-visibility warning beams onto aisle floors to alert foot traffic. The spacious driver compartment features responsive multi-spool hydraulic levers, an adjustable suspension seat, an ergonomic steering column, and an emergency power cutoff switch within immediate arm's reach.
Key Features & Benefits:
-
4,400 lb Heavy Load Capacity (19.7" Load Center): Comfortably handles dense machinery crates, heavy palletized raw materials, and high-cube skids.
-
189" 3-Stage Full Free-Lift Mast: Allows stacking up to 15.75 feet while operating seamlessly inside standard intermodal shipping containers.
-
Integrated Hydraulic Side Shift: Enables lateral fork adjustment to seat pallets precisely between upright rack beams without repositioning the vehicle.
-
High-Capacity 48V / 450Ah Heated Lithium Battery: Built-in heating film maintains battery life and full discharge power in refrigerated and cold environments.
-
Industrial 48V / 150A 3-Phase Fast Charger: Recharges high-capacity lithium cells quickly to keep multi-shift distribution centers operating with minimal downtime.
-
Premium Curtis AC Drive Controller: Delivers smooth proportional acceleration up to 8.1 mph laden/unladen, precision inching control, and active diagnostics.
-
Tight 65" Turning Radius (130" Aisle Width): Provides superior maneuverability compared to conventional 4-wheel forklifts in space-constrained facilities.
-
Dual Pedestrian Warning Blue Lights: Projects visible blue light halos onto floor walkways to prevent pedestrian-vehicle collisions around blind corners.
-
Durable Wet Disc Brakes & Solid Rubber Tires: Puncture-proof tires and enclosed oil-immersed disc brakes deliver maximum uptime with minimal maintenance.
-
Precision Multi-Valve Levers & Fully Adjustable Cab: Ergonomic layout reduces driver fatigue with responsive hydraulic fingertip control and customizable seating.
Frequently asked questions
This fully electric forklift has a maximum rated lifting capacity of 4,400 lbs, making it suitable for warehouses, distribution centers, manufacturing facilities, and industrial material handling applications. The rated load center is 19.7 inches. Always follow the forklift's load capacity chart, especially when lifting loads to elevated heights.
The forklift offers a maximum lifting height of 189 inches (15.75 feet), making it suitable for high-rack pallet stacking, elevated warehouse storage, loading operations, and inventory management.
Yes. Its counterbalanced design allows it to handle compatible standard open-bottom pallets, closed-bottom pallets, and industrial skids without front support legs interfering with pallet entry. Always verify pallet dimensions, fork clearance, and load compatibility.
The forklift features a rechargeable 48V/450Ah lithium battery designed to support demanding warehouse lifting and transportation operations. It eliminates the need for routine battery watering associated with traditional flooded lead-acid batteries.
