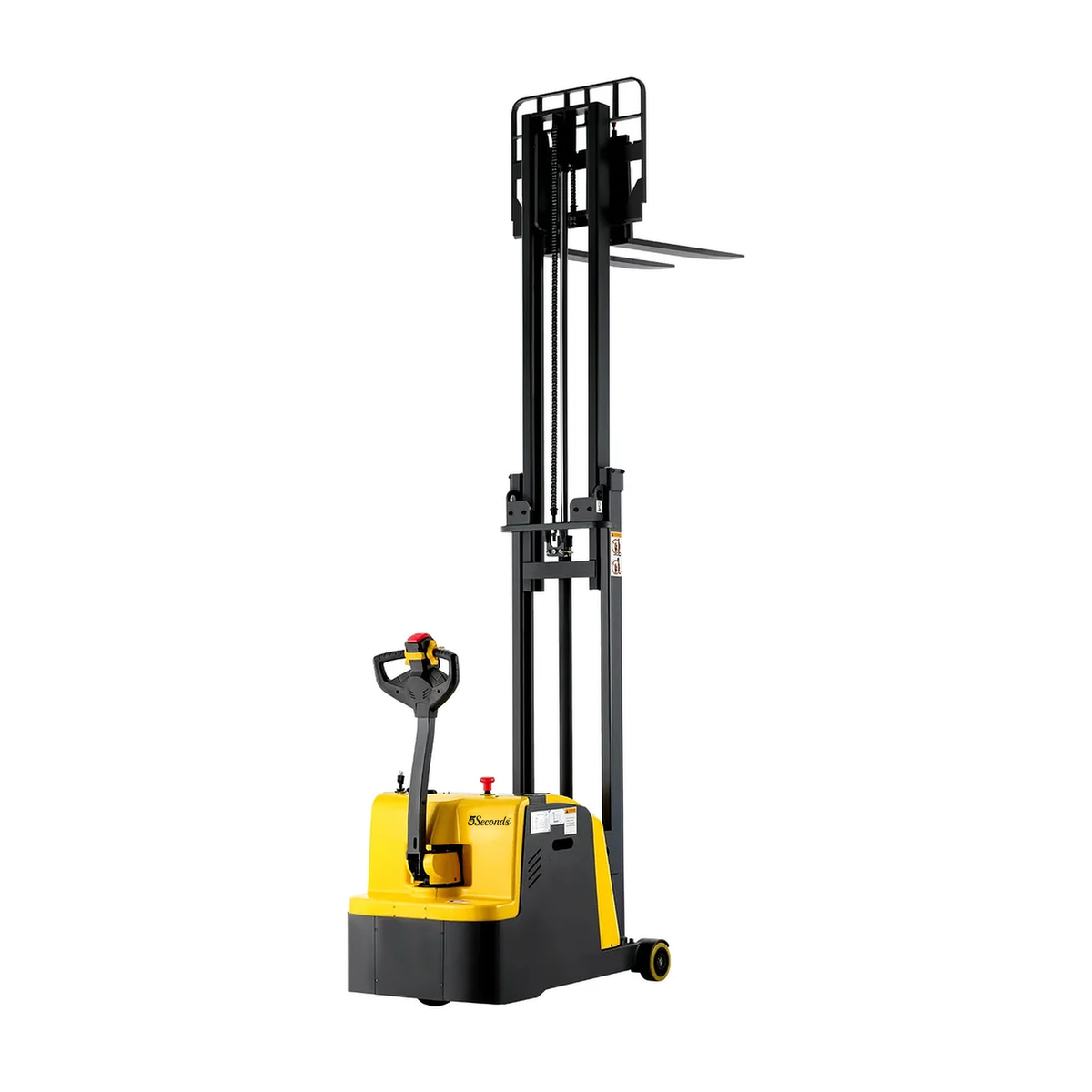

5Seconds - Counterbalanced Stacker - 777038 | 1200 Lbs Capacity, 118in Lift, 24V Gel Battery 1 / 16
1,200 lbs Load Capacity
37.4" L × 8.7–25.4" W × 1.3" Thick Fork Dimensions
24V / 100Ah Battery
118" Max Lifting Height

SKU: 777038

5Seconds - Counterbalanced Stacker - 777038 | 1200 Lbs Capacity, 118in Lift, 24V Gel Battery

$6,999.99 ea.
  • Load Capacity: 1,200 lbs
  • Fork Dimensions: 37.4" L × 8.7–25.4" W × 1.3" Thick
  • Battery: 24V / 100Ah
  • Battery Type: Gel Battery
Processing time: ships in 2 business days
Spec sheet Warranty
Available for pick-up

Specifications

Load Capacity 1,200 lbs
Fork Dimensions 37.4" L × 8.7–25.4" W × 1.3" Thick
Battery 24V / 100Ah
Battery Type Gel Battery
Load Center 15.7"
Turning Radius 46.1"
Aisle Width 113.4"
Inside Fork Width 0.9"–17.6"
Overall Dimensions 83.3" L × 33.3" W
Max Lifting Height 118"
Mast Height (Lowered/Extended) 80.8" / 143.3"
Fork Lowered Height 1.3"
Charger 24V / 10A Built-in
Travel Speed (Laden/Unladen) 2.5 / 2.8 mph
Lifting Speed (L/U) 6.7 / 9.8 inch/s
Lowering Speed (L/U) 5.5 / 5.5 inch/s
Service Weight 2,038 lbs

Built for the job

LEG-FREE COUNTERBALANCED ARCHITECTURE

Built without front straddle legs or base outriggers, this counterbalanced walkie stacker approaches loads like a full-sized forklift. It enters closed-bottom GMA pallets, block skids, automated conveyor stations, and machinery feed docks with zero floor-level interference.

TILT-ADJUSTABLE HYDRAULIC MAST

Equipped with powered forward and backward mast tilt controlled directly from the tiller head. Operators can tilt the mast back to securely cradle 1,200 lb loads during transport and tilt forward for millimeter-precise alignment when slotting pallets onto 118" high racking beams.

ULTRA-TIGHT 46.1" PIVOT RADIUS

Featuring an exceptionally compact 46.1" turning radius and a streamlined 33.3" chassis width, this stacker navigates cramped box trucks, freight elevators, and dense shop-floor aisles where legged stackers cannot maneuver.

ULTRA-LOW 1.3" LOWERED FORK PROFILE

Engineered with heavy-duty 37.4" solid steel forks that lower to an ultra-thin 1.3" clearance height, easily sliding into damaged pallets, custom overseas crates, and shallow European skids where conventional forks bind.

INTEGRATED 2,038 LB COUNTERWEIGHT BALLAST

A solid 2,038 lb service weight provides an engineered rear ballast that stabilizes full 1,200 lb loads throughout the entire 118" vertical stroke. A 3-point wheel geometry with polyurethane drive and load wheels ensures balanced ground traction across smooth industrial floors.

BUILT-IN 24V POWER SYSTEM WITH 110V WALL CHARGING

Powered by a sealed 24V / 100Ah battery system featuring low-voltage cut-off protection. The integrated onboard charger plugs straight into any standard 110V commercial wall receptacle, eliminating dedicated charging rooms and external transformers.

Key Features & Benefits:

  • Leg-Free Counterbalance Framework: Eliminates front outriggers to deliver unobstructed access to closed-deck pallets, bulk containers, and machinery feed tables.

  • Powered Forward & Reverse Mast Tilt: Tiller-controlled hydraulic tilt cradles loads safely during travel and simplifies pallet placement on high shelving.

  • Ultra-Compact 46.1" Turning Radius: Delivers industry-leading agility inside shipping containers, small stockrooms, and narrow facility aisles.

  • Ultra-Low 1.3" Lowered Fork Clearance: Effortlessly enters low-profile skids, shallow crate pockets, and collapsed pallet openings.

  • Reliable 118" Vertical Lift Height (9.83 ft): Smoothly elevates 1,200 lb pallets to second- and third-tier warehouse storage racks.

  • Maintenance-Free 24V Battery System: Dependable daily power delivery with zero acid watering, leak risks, or daily battery maintenance.

  • Self-Contained 110V Onboard Wall Charger: Built-in charger with standard wall plug enables effortless charging at any conventional outlet.

  • Laterally Adjustable 37.4" Forks (8.7"–25.4"): Heavy-duty solid steel forks slide smoothly along the carriage rail to accommodate varied load widths.

  • Creep Mode with Upright Tiller Travel: Allows precise, low-speed positioning in ultra-confined spaces with the handle held completely vertical.

  • Full Safety & Diagnostic Control Suite: Equipped with automatic electromagnetic braking, emergency belly reverse switch, hydraulic burst protection, and a real-time digital battery/hour meter.

Frequently asked questions

This counterbalanced electric stacker has an advertised lifting capacity of 1,200 lbs, making it suitable for light-duty warehouse operations, retail stockrooms, and material handling applications. Always follow the equipment's rated load capacity and load center requirements.

The stacker offers a maximum lifting height of 118 inches (9.8 feet), making it suitable for pallet stacking, elevated warehouse shelving, and inventory storage.

Yes. Its leg-free counterbalanced design allows it to handle compatible closed-bottom pallets, open-bottom pallets, and low-clearance skids without front support legs interfering with pallet entry.

The stacker features an emergency stop button, emergency reverse protection, electromagnetic braking, turtle-speed mode, hydraulic overload protection, and automatic travel-speed reduction when lifting loads to elevated heights.
