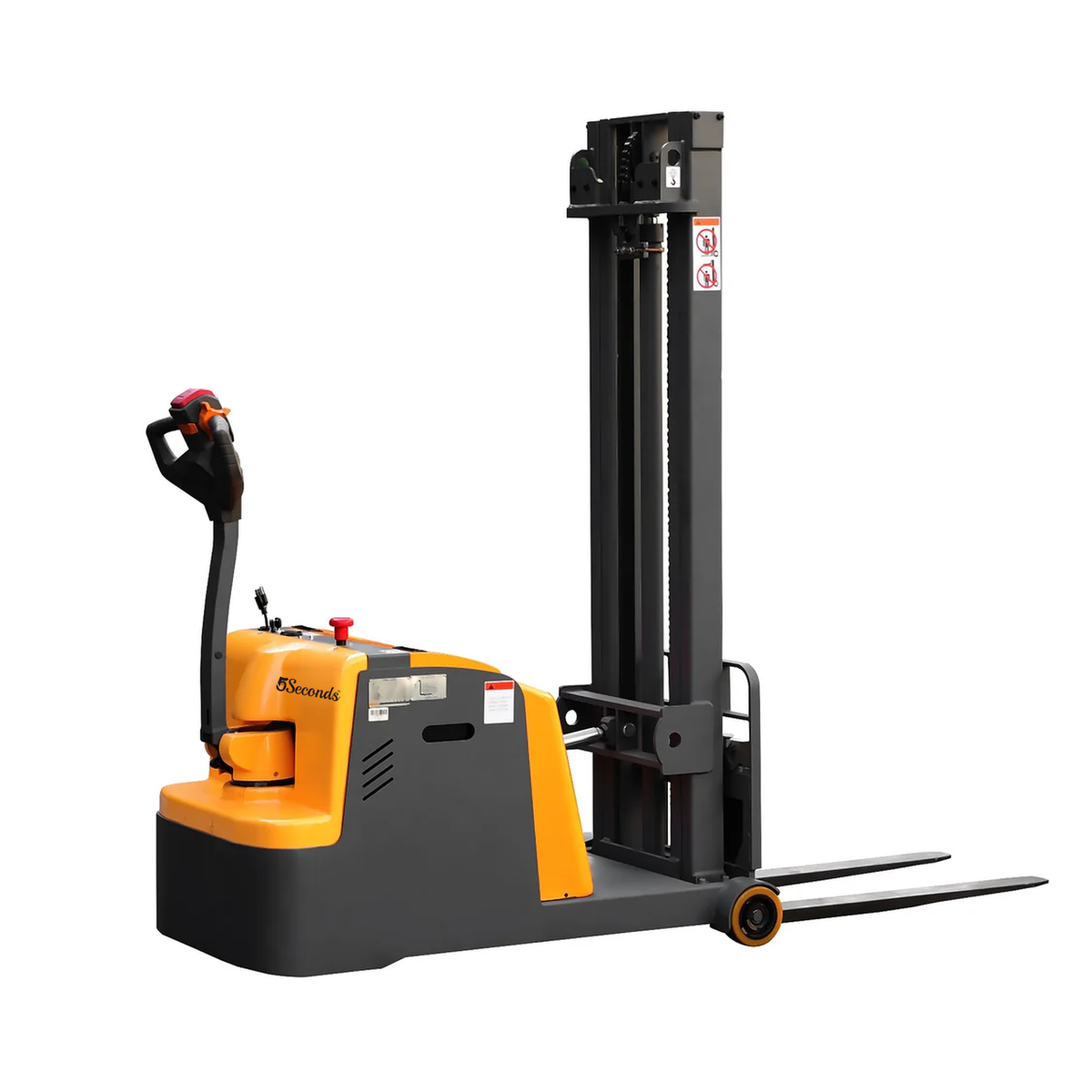

5Seconds - Counterbalanced Stacker - 777040 | 2200 Lbs Capacity, 118in Lift, 24V Gel Battery 1 / 8
2,200 lbs Load Capacity
37.4" L × 8.7–25.4" W × 1.3" Thick Fork Dimensions
24V / 125Ah Battery
118" Max Lifting Height

SKU: 777040

5Seconds - Counterbalanced Stacker - 777040 | 2200 Lbs Capacity, 118in Lift, 24V Gel Battery

$7,999.99 ea.
  • Load Capacity: 2,200 lbs
  • Fork Dimensions: 37.4" L × 8.7–25.4" W × 1.3" Thick
  • Battery: 24V / 125Ah
  • Battery Type: Lead-Acid
Processing time: ships in 2 business days
Spec sheet Warranty
Available for pick-up

Specifications

Load Capacity 2,200 lbs
Fork Dimensions 37.4" L × 8.7–25.4" W × 1.3" Thick
Battery 24V / 125Ah
Battery Type Lead-Acid
Load Center 15.7"
Turning Radius 52.5"
Aisle Width 113.4"
Inside Fork Width 0.9"–17.6"
Overall Dimensions 96.7" L × 33.3" W
Max Lifting Height 118"
Mast Height (Lowered/Extended) 80.8" / 143.3"
Fork Lowered Height 1.3"
Charger 24V / 10A Built-in
Travel Speed (L/U) 2.4 / 2.6 mph
Lifting Speed (L/U) 4.3 / 5.9 inch/s
Lowering Speed (L/U) 3.5 / 3.2 inch/s
Service Weight 2,720 lbs

Built for the job

TALL 118" LIFT ELEVATION FOR HIGH-TIER RACK ACCESS

Engineered for facilities needing extended vertical storage, this counterbalanced walkie stacker elevates 2,200 lb industrial loads smoothly up to 118" (9.83 ft). Reaching a peak extended mast height of 143.3", it allows operators to service upper-tier pallet racking and high machinery feed decks without a large forklift.

UNRESTRICTED LEG-FREE FORK ACCESS FOR CLOSED-DECK PALLETS

Built completely free of forward outrigger base legs, this unit operates with the direct loading access of a counterbalanced truck. It drives straight up to closed-bottom GMA pallets, bulk European containers, and specialized manufacturing docks with zero floor-level leg binding.

HYDRAULIC MAST TILTING FOR HIGH-REACH LOAD STABILITY

Equipped with powered forward and backward mast tilt controlled directly from the ergonomic tiller head. Operators can tilt the mast back to stabilize heavy palletized freight during transport, and tilt forward for smooth, millimeter-precise load release at full 118" elevation.

HEAVY 2,720 LB COUNTERWEIGHT BALLAST FRAME

Constructed with an engineered 2,720 lb service weight that acts as a solid rear ballast, anchoring the three-point chassis firmly to the floor. High-grade polyurethane load and drive wheels ensure smooth ground tracking and minimize mast vibration when maneuvering loads at height.

LOW 80.8" COLLAPSED MAST & COMPACT 52.5" PIVOT RADIUS

Featuring an 80.8" lowered mast height and a tight 52.5" turning radius, this unit glides through standard warehouse doors and pivots sharply inside crowded loading docks, truck beds, and narrow 113.4" racking aisles.

HIGH-OUTPUT 24V / 125Ah POWER WITH INTEGRATED 110V CHARGER

Powered by a sealed, maintenance-free 24V / 125Ah battery system engineered for extended daily duty cycles without water replenishment. The onboard 110V wall charger plugs directly into conventional commercial AC wall outlets for simple, station-free overnight charging.

Key Features & Benefits:

  • Extended 118" Vertical Reach (9.83 ft): Delivers an additional 20 inches of vertical lift over 98" models, easily servicing second- and third-tier warehouse pallet beams.

  • Leg-Free Counterbalanced Framework: No front outrigger legs; drives directly into closed-deck pallets, automated machinery docks, and shipping containers.

  • High-Capacity 2,200 lb Payload Rating: Handles dense industrial inventory, heavy raw materials, and stacked goods with push-button electric efficiency.

  • Tiller-Operated Hydraulic Mast Tilt: Forward and reverse mast tilt secures freight during transit and simplifies pallet placement on high shelving.

  • Ultra-Thin 1.3" Lowered Fork Entry: Effortlessly slides into shallow pallet pockets, low-clearance skids, and damaged crates without jamming.

  • Nimble 52.5" Turning Radius: Navigates tight corners, container doorways, and narrow warehouse corridors with ease.

  • Sealed Maintenance-Free 24V / 125Ah Battery: Delivers high-torque energy storage with zero fluid topping, acid hazards, or daily maintenance routines.

  • Built-In 110V Commercial Wall Charger: Self-contained charger cord plugs straight into any standard 110V AC outlet for easy charging anywhere in the shop.

  • Laterally Sliding 37.4" Solid Steel Forks (8.7"–25.4"): Heavy-duty forks adjust quickly across carriage rails to accommodate custom crating and varied skid widths.

  • Full Safety & Diagnostic Control Suite: Features an automatic electromagnetic parking brake, emergency belly reverse switch, upright-handle turtle crawl mode, and an integrated digital battery/hour meter.

Frequently asked questions

This fully electric counterbalanced stacker has a maximum rated lifting capacity of 2,200 lbs, making it suitable for warehouses, distribution centers, manufacturing facilities, and material handling applications. Always follow the rated load capacity and load center requirements.

The stacker offers a maximum lifting height of 118 inches (9.8 feet), making it suitable for pallet stacking, elevated warehouse shelving, and inventory storage.

This is a fully electric counterbalanced stacker featuring powered lifting, lowering, and travel. Operators can transport and position heavy pallets without manually pushing or pulling the equipment.

Yes. Its leg-free counterbalanced design allows it to handle compatible closed-bottom pallets, open-bottom pallets, and skids without front support legs interfering with pallet entry. Always verify pallet dimensions and load compatibility.
