1 / 8
3,300 lbs
Load Capacity
42" L × 8.7–25.4" W × 1.4" Thick
Fork Dimensions
24V / 125Ah
Battery
118"
Max Lifting Height
SKU: 777041

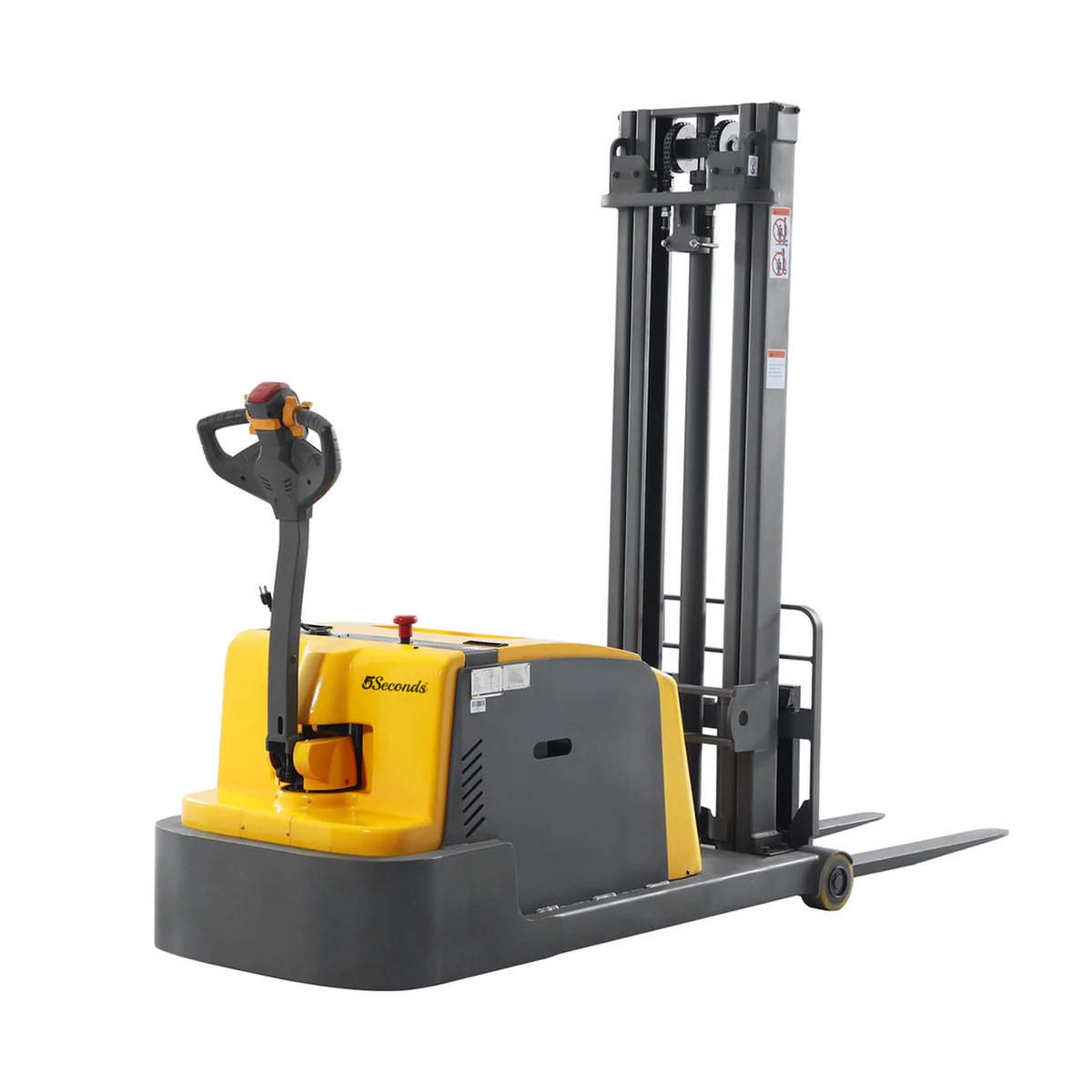

5Seconds - Counterbalanced Stacker - 777041 | 3300 Lbs Capacity, 118in Lift, 24V Gel Battery
- Load Capacity: 3,300 lbs
- Fork Dimensions: 42" L × 8.7–25.4" W × 1.4" Thick
- Battery: 24V / 125Ah
- Battery Type: Lead-Acid
Specifications
Built for the job
LEG-FREE ACCESS FOR CLOSED PALLETS & TIGHT WORKCELLS
Engineered completely free of front outrigger legs, this heavy-duty counterbalanced walkie stacker approaches loads with the direct front access of a conventional forklift. It docks seamlessly against automated machinery, feeds raised conveyors, and lifts closed-bottom GMA pallets, solid skids, and Euro containers with zero floor-level leg binding.
3,300 LB HIGH-CAPACITY INDUSTRIAL LOAD RATING
Built for intensive industrial operations, this flagship model handles dense 3,300 lb palletized payloads at a 19.7" load center. Powered travel and heavy-duty electric hydraulics allow a single walk-behind operator to transport, position, and stage massive freight with complete confidence.
HIGH-TORQUE BRUSHLESS AC DRIVE PROPULSION
Equipped with a vertical brushless AC motor, the drive system delivers responsive acceleration, quiet operation under 70 dB(A), and strong ramp-climbing power under load. The brushless motor eliminates periodic brush replacements, while regenerative braking recovers energy during slowing and reduces mechanical brake wear.
HYDRAULIC MAST TILTING FOR HIGH-REACH STABILITY
Integrated forward and backward mast tilt controlled directly from the ergonomic tiller handle gives operators full control over load alignment. Backward tilt cradles heavy cargo securely during transport across uneven facility floors, while forward tilt enables smooth, millimeter-accurate pallet placement onto 118" high rack beams.
MASSIVE 3,460 LB SOLID BALLAST CHASSIS
An engineered service weight of 3,460 lbs serves as an integrated counterweight ballast, keeping the rounded low-profile chassis firmly anchored during maximum vertical lifting. A three-point stance with smooth-rolling polyurethane drive and load wheels provides balanced weight distribution and dependable traction.
FULL-LENGTH 42" ADJUSTABLE FORKS & LOW ENTRY
Fitted with extended 42" solid steel forks that slide across heavy carriage rails from 8.7" to 25.4" outer width (0.9" to 17.6" inside width). The low 1.4" lowered fork profile glides effortlessly under shallow pallet openings, low-clearance skids, and bulk storage bins.
SEALED 24V / 125Ah POWER & BUILT-IN 110V CHARGER
Powered by an industrial 24V / 125Ah battery system with low-voltage discharge protection. The onboard 24V / 10A charger features a charging safety interlock and plugs directly into any standard 110V commercial wall outlet for simple, station-free overnight recharging.
Key Features & Benefits:
-
Unobstructed Leg-Free Counterbalance Framework: Direct front-entry loading handles closed-deck GMA pallets, block skids, and machinery feed docks without straddle leg interference.
-
Maximum 3,300 lb Rated Lifting Capacity: Moves dense industrial materials, bulk equipment, and heavy palletized freight effortlessly up to 118" (9.83 ft).
-
Maintenance-Free Brushless AC Motor: Delivers high torque, smooth speed transitions, and quiet operation under 70 dB(A) with zero carbon brush upkeep.
-
Powered Hydraulic Mast Tilt: Tiller-actuated forward and reverse tilt cradles loads safely in transit and streamlines pallet placement on upper racking.
-
Heavy 3,460 lb Solid Ballast Chassis: Engineered low center of gravity ensures solid floor anchoring and rigidity when elevating maximum loads to full height.
-
Extended 42" Sliding Steel Forks (8.7"–25.4"): Heavy-duty forks adjust quickly across carriage rails to accommodate standard 40" × 48" pallets and specialty crates.
-
Low-Profile 1.4" Lowered Fork Height: Easily slips into shallow pallet pockets, damaged skids, and low-clearance industrial containers.
-
Sealed 24V / 125Ah Battery System: Delivers consistent high-capacity energy storage without battery watering chores or acid spill hazards.
-
Integrated 110V Wall-Plug Charger: Onboard charger with standard plug allows direct recharging at any conventional AC wall receptacle.
-
Full Operator Safety Suite: Includes automatic electromagnetic brakes, turtle crawl speed with upright tiller walking, emergency belly reverse switch, and real-time digital dashboard diagnostics.
Frequently asked questions
This fully electric counterbalanced stacker has a maximum rated lifting capacity of 3,300 lbs, making it suitable for warehouses, distribution centers, manufacturing facilities, and heavy-duty material handling applications. The rated load center is 19.7 inches.
The stacker offers a maximum lifting height of 118 inches (9.8 feet), making it suitable for pallet stacking, elevated warehouse shelving, and inventory storage.
This is a fully electric counterbalanced stacker featuring powered lifting, lowering, and travel. Operators can transport and position heavy pallets without manually pushing or pulling the equipment.
Yes. Its leg-free counterbalanced design allows it to handle compatible closed-bottom pallets, open-bottom pallets, and skids without front support legs interfering with pallet entry. Always verify pallet dimensions and load compatibility.
