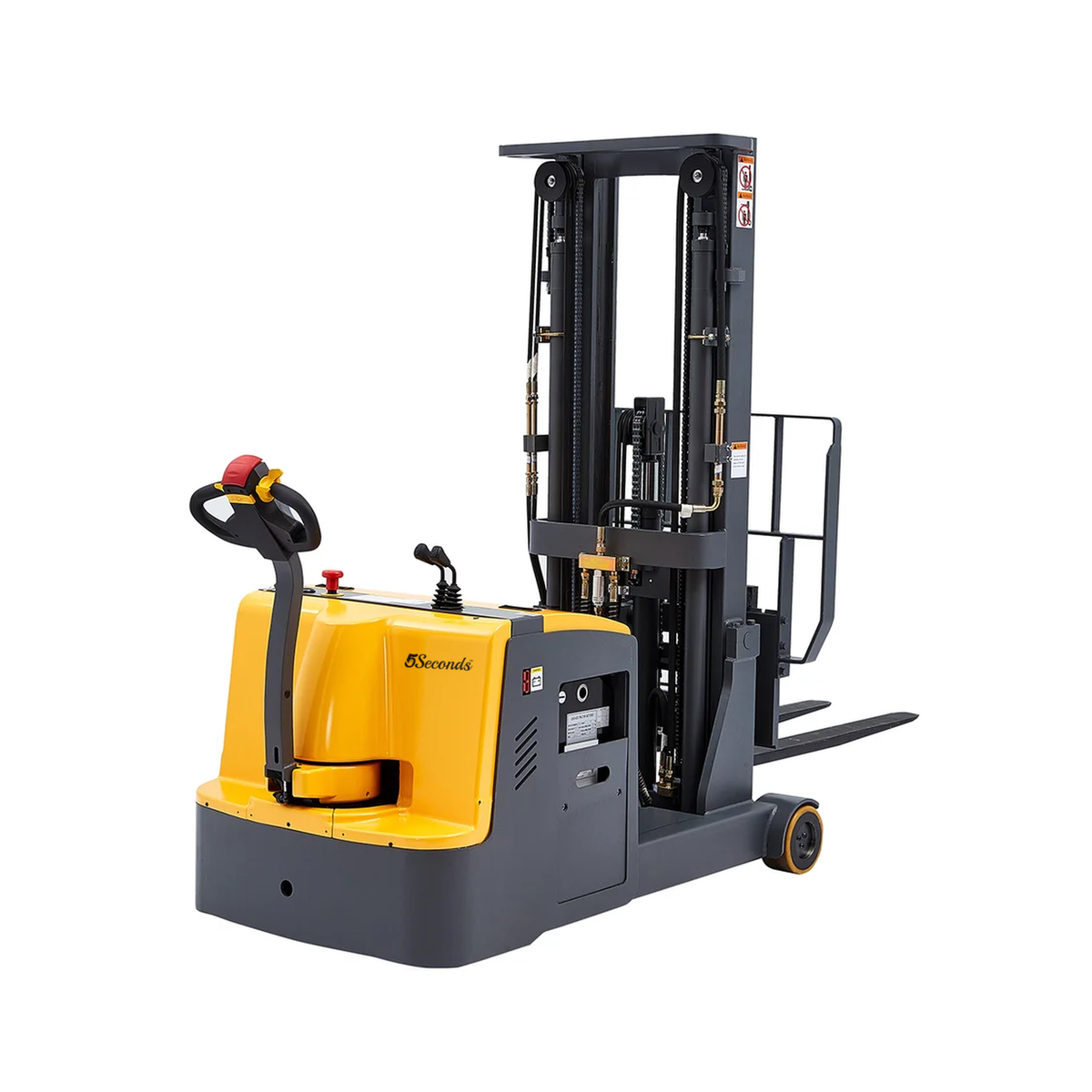

5Seconds - Counterbalanced Stacker - 777042 | 3300 Lbs Capacity, 177in Lift, 24V Gel Battery 1 / 13
3,300 lbs Load Capacity
42" L × 8.7–26.8" W × 1.4" Thick Fork Dimensions
24V / 280Ah Battery
177" Max Lifting Height

SKU: 777042

5Seconds - Counterbalanced Stacker - 777042 | 3300 Lbs Capacity, 177in Lift, 24V Gel Battery

$14,499.99 ea.
  • Load Capacity: 3,300 lbs
  • Fork Dimensions: 42" L × 8.7–26.8" W × 1.4" Thick
  • Battery: 24V / 280Ah
  • Battery Type: Lead Acid
Processing time: ships in 2 business days
Spec sheet Warranty
Available for pick-up

Specifications

Load Capacity 3,300 lbs
Fork Dimensions 42" L × 8.7–26.8" W × 1.4" Thick
Battery 24V / 280Ah
Battery Type Lead Acid
Load Center 19.7"
Turning Radius 61.8"
Aisle Width 120.9"
Inside Fork Width 0.9"–19"
Overall Size 109.4" L × 39" W
Max Lifting Height 177"
Mast Height (Lowered/Extended) 82.1" / 216.5"
Fork Lowered Height 1.4"
Charger 24V / 40A External
Travel Speed (L/U) 3.6 / 3.7 mph
Lifting Speed (L/U) 4.7 / 7.5 inch/s
Lowering Speed (L/U) 9.8 / 7.8 inch/s
Service Weight 4,740 lbs

Built for the job

TOWERING 177" LIFT FOR HIGH-BAY WAREHOUSE RACKING

Engineered to deliver true forklift-level high-bay reach without large vehicle turning constraints, this heavy counterbalanced walkie stacker elevates 3,300 lb pallets smoothly up to 177" (14.75 ft). Reaching a peak extended mast height of 216.5" (over 18 ft), it maximizes upper-tier storage utilization in high-density distribution centers.

UNRESTRICTED LEG-FREE LOADING FOR CLOSED PALLETS

Constructed completely free of forward outrigger base legs, this unit operates with the direct front access of a counterbalanced truck. It drives straight up to closed-bottom GMA pallets, solid wooden skids, machinery feed conveyors, and shipping container docks with zero floor-level leg interference.

MASSIVE 4,740 LB SOLID BALLAST STABILITY

With an engineered service weight of 4,740 lbs, the heavy chassis acts as an integrated counterbalancing ballast, keeping the three-point stance solidly anchored to the floor during high-reach pallet placement. High-grade polyurethane drive and load wheels ensure smooth, quiet transit under maximum load.

HIGH-TORQUE BRUSHLESS AC DRIVE & REGENERATIVE BRAKING

Equipped with a vertical brushless AC motor, the drive system delivers responsive acceleration up to 3.7 mph and dependable ramp-climbing power with zero carbon brush upkeep. Integrated regenerative braking recaptures energy during slowing, extending daily battery life while minimizing mechanical brake wear.

INDUSTRIAL 24V / 280Ah POWER WITH SIDE-PULL COMPARTMENT

Powered by a massive 24V / 280Ah battery bank built for demanding multi-shift duty cycles. A lateral slide-out battery compartment allows quick battery swaps without overhead cranes, supported by an included high-output 24V / 40A external charger that plugs into standard 110V wall power.

POWERED MAST TILTING & INTUITIVE SAFETY CONTROLS

Features tiller-operated forward and backward mast tilting to cradle loads securely in transport and ensure millimeter-exact alignment when slotting pallets onto high storage beams. Equipped with smart speed zone control, an automatic electromagnetic parking brake, emergency belly reverse switch, and an integrated digital diagnostic display.

Key Features & Benefits:

  • Towering 177" Vertical Reach (14.75 ft): Reaches high fourth- and fifth-tier pallet rack beams with an impressive 216.5" peak extended mast ceiling.

  • Unobstructed Leg-Free Counterbalance Stance: Eliminates front outriggers to deliver direct front access to closed-deck GMA pallets, bulk bins, and machine docks.

  • High-Capacity 3,300 lb Workload Rating: Powered electric travel and hydraulic lifting handle dense freight and heavy industrial equipment with ease.

  • Heavy Industrial 4,740 lb Ballast Frame: Provides rock-solid floor stability and torsional mast rigidity during high-elevation pallet staging.

  • Maintenance-Free Brushless AC Drive Motor: Delivers rapid 3.7 mph travel speeds and strong ramp power with zero carbon brush upkeep.

  • Quick Side-Pull Battery Compartment: Lateral sliding compartment simplifies battery maintenance and allows rapid battery changeouts for multi-shift operations.

  • High-Output 24V / 280Ah Battery System: Sustains intensive, heavy-duty warehouse shifts; includes an external 40A fast charger compatible with 110V outlets.

  • Powered Hydraulic Mast Tilt: Forward and reverse mast tilt stabilizes loads during transit and streamlines pallet placement on high shelving.

  • Adjustable 42" Solid Steel Forks (8.7"–26.8"): Sliding forks adjust quickly across carriage rails to accommodate varied load widths, with a low 1.4" lowered entry profile.

  • Complete Ergonomic Safety Console: Includes automatic electromagnetic brakes, turtle crawl speed mode, emergency belly reversing button, and real-time digital monitoring panel.

Frequently asked questions

This fully electric counterbalanced stacker has a maximum rated lifting capacity of 3,300 lbs, making it suitable for warehouses, distribution centers, manufacturing facilities, and industrial material handling applications.

The stacker offers a maximum lifting height of 177 inches (14.75 feet), making it suitable for high-rack pallet stacking, elevated warehouse storage, and inventory management.

This is a fully electric counterbalanced stacker featuring powered lifting, lowering, and travel. Operators can transport and position heavy pallets without manually pushing or pulling the equipment.

Yes. Its leg-free counterbalanced design allows it to handle compatible closed-bottom pallets, open-bottom pallets, and skids without front support legs interfering with pallet entry. Always verify pallet dimensions and load compatibility.
