4,400 lbs
Load Capacity
48" L × 27" W × 2.1" Thick
Fork Dimensions
24V / 105Ah Lead-Acid
Battery
4.3"
Lifting Distance
SKU: 777023

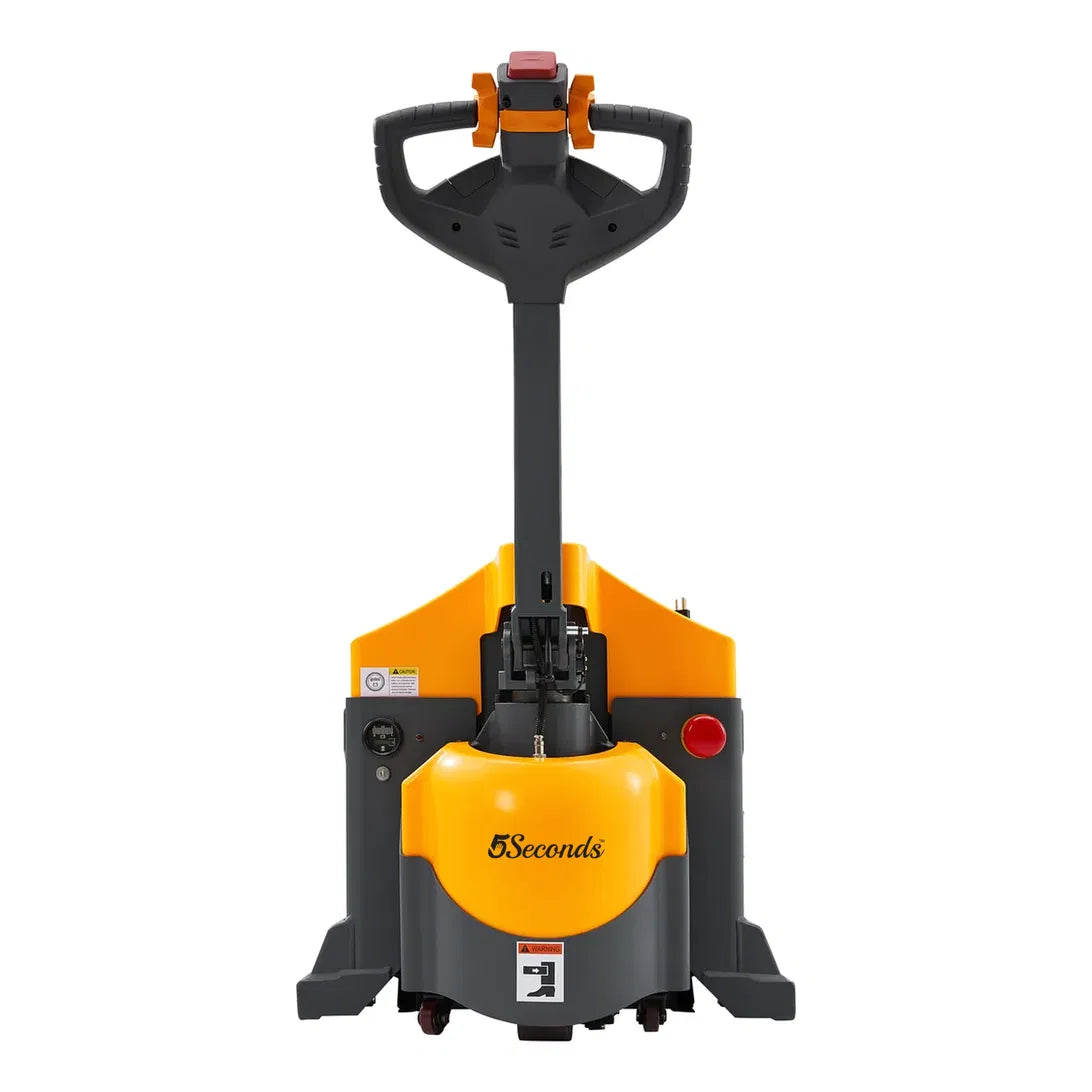

5Seconds - Electric Pallet Jack - 777023 | 4400 Lbs Capacity, 24V/105Ah Gel Battery
- Load Capacity: 4,400 lbs
- Fork Dimensions: 48" L × 27" W × 2.1" Thick
- Battery: 24V / 105Ah
- Battery Type: Lead-Acid
Specifications
Built for the job
HIGH-CAPACITY 4,400 LB INDUSTRIAL WORKHORSE
Built for heavy freight and demanding warehouse duty cycles, this powered pallet mover transports up to 4,400 lbs with effortless electric travel and push-button hydraulic lift, eliminating strenuous manual pumping.
HIGH-AMPERAGE 105Ah GEL BATTERY FOR EXTENDED SHIFTS
Equipped with an extra-capacity 24V / 105Ah sealed GEL lead-acid battery, this machine delivers dependable 6 to 8 hours of operating endurance for high-volume loading docks without messy acid handling or fluid checks.
INTEGRATED 10A ONBOARD CHARGING
Features an internal 24V / 10A battery charger with an integrated power lead that plugs directly into any standard 110V wall outlet. Charge conveniently anywhere across the plant without searching for external charger units.
59.5" TURNING RADIUS & COMPACT MANEUVERING
With a 59.5" turning radius and an operating aisle requirement of 90.9", operators can pivot heavy 4,400 lb loads smoothly. The one-touch turtle creep button enables low-speed crawl travel with the control arm upright in cramped freight containers.
SHOCK-ABSORBING FLOATING STABILIZER CASTERS
Dual spring-loaded floating balance wheels flank the main drive wheel, maintaining firm 4-point ground traction over dock levelers, floor expansion joints, and uneven warehouse thresholds to eliminate chassis sway under heavy loads.
ELEVATED MOTOR MOUNTING & RUGGED METAL HOUSING
The drive motor sits high off the floor to safeguard electrical windings and internal gearing against ground moisture, washdown spray, and pallet debris, ensuring dependable uptime across harsh industrial environments.
Key Features & Benefits:
-
Heavy 4,400 LB Capacity Rating: Engineered for intensive industrial facilities handling full pallets, machinery crates, and dense production materials.
-
Deep-Cycle 105Ah Sealed GEL Battery: Generous 105Ah capacity provides continuous power for 6–8 hour work shifts with zero acid maintenance requirements.
-
Built-In 110V Internal Charger: Directly plugs into regular commercial wall outlets via an onboard charging cord for simple, station-free recharging.
-
Spring-Loaded Floating Balance Wheels: Stabilizes the chassis during turns, preventing side roll and keeping consistent traction over uneven floor plates.
-
Upright Tiller & Creep Speed Function: Allows precise, slow-speed maneuvering with the control arm held strictly vertical in tight truck beds.
-
Top-Positioned Drive Motor: Raised motor architecture keeps critical electronics clear of floor dirt, water puddles, and loose debris.
-
Standard 27" × 48" Fork Configuration: Designed for standard U.S. pallets, incorporating entrance guide rollers for smooth, snag-free fork insertion.
-
Streamlined Maintenance Accessibility: Fast-access metal cover permits straightforward inspection of internal wiring, hydraulic lines, and drive mechanics.
-
Fail-Safe Electromagnetic Braking: Heavy-torque automatic brake engages instantaneously upon throttle release or emergency stop activation.
-
Floor-Protective Polyurethane Rollers: Durable PU steer and load wheels absorb operational vibrations and protect industrial surfaces from unsightly scuffs.
5Seconds Electric Pallet Jack
Experience effortless material handling with the 5Seconds Electric Pallet Jack, designed to lift and transport loads up to 4,400 lbs. Equipped with powerful electric lifting and driving, an ergonomic multifunction control handle, and a long-lasting 24V/105Ah Lead-acid offering 6–8 hours of advertised runtime, this pallet jack delivers smooth maneuverability, improved stability, and dependable performance in warehouses, retail spaces, and distribution centers.
Lift Smarter. Move Easier. Work Faster.
CONVENIENT EXTERNAL CHARGING
-
The external charging port enables hassle-free battery charging without removal. Spare batteries can also be charged directly through the connector, making daily charging simpler, faster, and more convenient.
ERGONOMIC MULTIFUNCTION HANDLE
-
Designed for effortless control, the handle features a horn, emergency reverse button, accelerator, lift button, and turtle-speed mode. Its ergonomic design ensures intuitive, secure operation while improving safety and efficiency.
DUAL-PURPOSE EMERGENCY STOP
-
The emergency stop switch immediately cuts power during critical situations and also serves as a power lock. This dual-function design provides an additional layer of safety, security, and operational reliability.
QUICK & EASY MAINTENANCE
-
Removing the protective cover provides complete access to electrical and mechanical components, allowing faster inspections, routine maintenance, and part replacements for improved service efficiency.
See The 5Seconds Difference
The 5Seconds Electric Pallet Jack features a heavy-duty one-piece rocker-arm steel frame, efficient electric drive and lifting system, integrated multifunction control handle, and long-runtime 24V/105Ah GEL lead-acid battery. With a 4,400 lb load capacity, compact 59.5-inch turning radius, upright turtle-speed mode, floating balance wheels, and advanced safety features, it delivers smooth maneuverability, reduced operator fatigue, and dependable performance throughout demanding warehouse operations.
Frequently asked questions
This electric pallet jack has a maximum load capacity of 4,400 lbs, making it ideal for moving heavy pallets in warehouses, distribution centers, retail stores, and loading areas.
The 24V/105Ah GEL-type lead-acid battery provides approximately 6–8 hours of runtime, depending on load weight, travel distance, and operating conditions.
The forks lift to a maximum height of 7.3 inches, starting from a lowered height of 3 inches, providing 4.3 inches of lifting travel.
Turtle mode allows reduced-speed operation for better control in tight spaces. It also supports slow-speed movement with the handle in an upright position.
