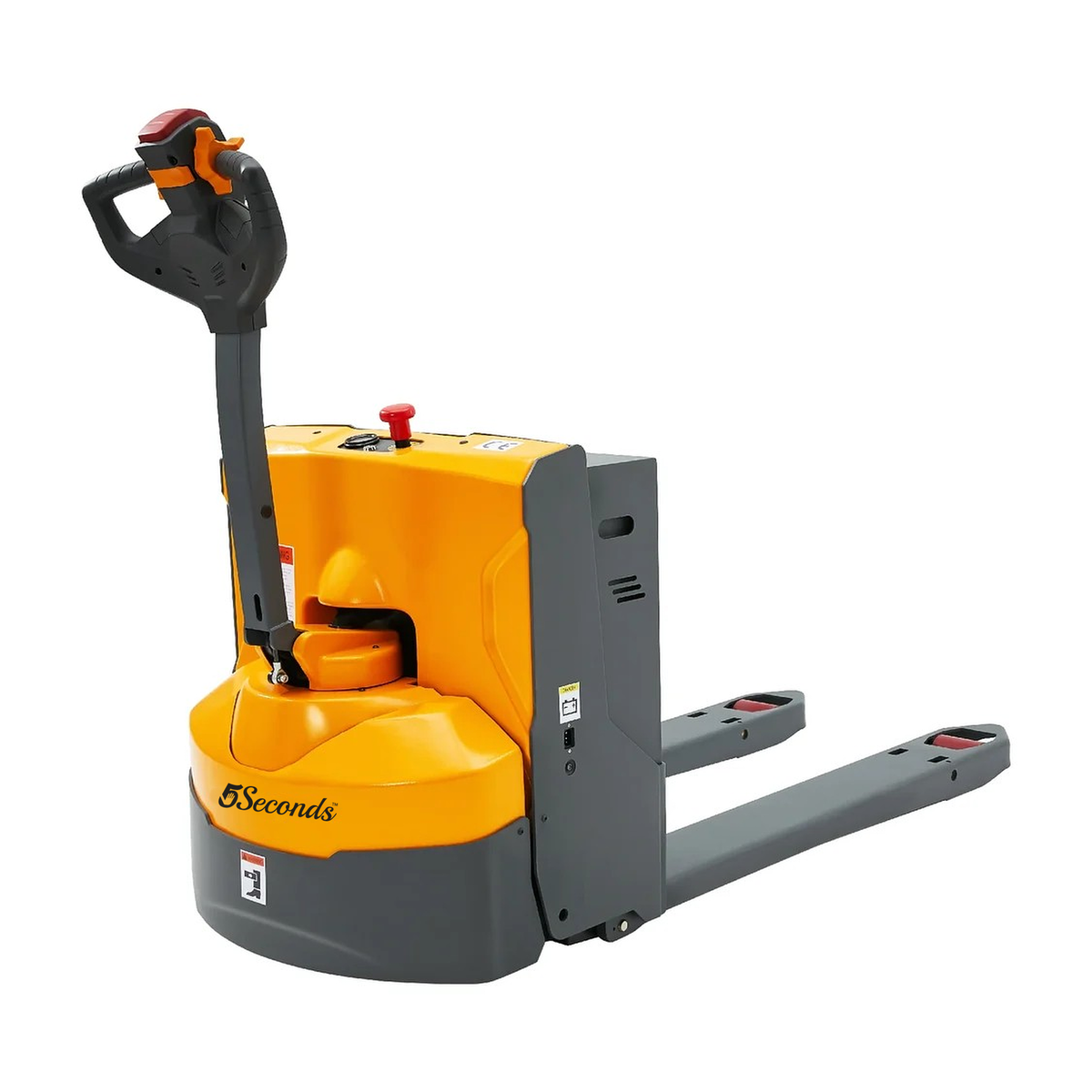

5Seconds - Electric Pallet Jack - 777024 | 4400 Lbs Capacity, 24V/180Ah Lead-Acid Battery 1 / 10
4,400 lbs Load Capacity
48" L × 27" W × 2.1" Thick Fork Dimensions
24V / 180Ah Battery
4.3" Lifting Distance

SKU: 777024

5Seconds - Electric Pallet Jack - 777024 | 4400 Lbs Capacity, 24V/180Ah Lead-Acid Battery

$4,899.99 ea.
  • Load Capacity: 4,400 lbs
  • Fork Dimensions: 48" L × 27" W × 2.1" Thick
  • Battery: 24V / 180Ah
  • Battery Type: Lead-Acid
Processing time: ships in 2 business days
Spec sheet Warranty
Available for pick-up

Specifications

Load Capacity 4,400 lbs
Fork Dimensions 48" L × 27" W × 2.1" Thick
Battery 24V / 180Ah
Battery Type Lead-Acid
Aisle Width 95.2"
Inside Fork Width 13.6"
Overall Size (L×W×H) 70.1" × 27" × 52.4"
Fork Lowered Height 3.1"
Lifting Distance 4.7"
Max Fork Height 7.8"
Charger 24V / 20A Built-in
Travel Speed (Laden) 3.6 mph
Travel Speed (Unladen) 3.7 mph
Service Weight 1,084 lbs

Built for the job

HIGH-TORQUE BRUSHLESS AC DRIVE SYSTEM

Powered by an advanced maintenance-free AC traction motor with no mechanical contactors or carbon brushes to replace. Delivers higher travel speeds up to 3.6 mph laden (3.7 mph unladen) and energy-recapturing regenerative braking that feeds power back into the battery during deceleration.

INDUSTRIAL 24V / 180Ah HIGH-CAPACITY POWER

Engineered for continuous multi-shift operations, the massive 180Ah industrial lead-acid battery bank delivers unrelenting power across grueling duty cycles. An onboard 110V fast charger keeps charging simple across facility outlets.

TOOLLESS SIDE-ROLLOUT BATTERY COMPARTMENT

Features a quick-access side-pull battery tray that rolls out on internal guides. Operators can perform multi-shift battery exchanges laterally in minutes without overhead cranes or specialized hoisting equipment.

HIGHER 7.8" FORK LIFT & PROTECTED UNDERCARRIAGE

Provides a generous 4.7" stroke reaching an elevated 7.8" maximum fork height, making it easier to clear steep dock transitions and rough floor expansion gaps. The elevated fork riser axles and heavy pull rods prevent underside scraping.

WATERPROOF & DUSTPROOF VERTICAL MOTOR SEALING

The vertical drive assembly features sealed, water-resistant motor encapsulation that keeps out washdown spray, condensation, and abrasive dust—ideal for cold storage docks, food warehousing, and damp industrial environments.

HEAVY CHASSIS STABILITY WITH SELF-ADJUSTING CASTERS

Weighing in at a rugged 1,084 lbs of structural steel, this unit stays planted under maximum 4,400 lb payloads. Self-adjusting spring-loaded side casters eliminate truck sway and maintain consistent ground grip across dock leveling plates.

Key Features & Benefits:

  • Maintenance-Free Brushless AC Motor: Eliminates directional contactors and carbon brush replacements, delivering instant acceleration, quiet operation, and lower lifetime upkeep costs.

  • Energy-Recapturing Regenerative Brakes: Converts kinetic braking force back into stored electrical energy, reducing brake pad wear while extending battery operating hours.

  • Slide-Out Side Battery Access: Lateral roll-out battery compartment allows fast battery changeouts between shifts without lifting rigging.

  • Deep-Cycle 24V / 180Ah Battery Capacity: High-amp industrial cell layout supports intensive high-throughput distribution hubs and multi-shift loading docks.

  • Elevated 7.8" Maximum Lift Clearance: Greater lifting range (4.7" stroke) easily clears uneven trailer thresholds and damaged pallet bottoms.

  • All-Weather Sealed Drive Assembly: Sealed vertical drive motor prevents moisture, washdown fluids, and dust ingress for reliable indoor/outdoor operation.

  • Ergonomic Long Tiller Steering Arm: Extended tiller geometry provides superior mechanical steering leverage, reducing operator arm fatigue on tight pivots.

  • Precision Stepless Speed & Turtle Crawl: Sensitive thumb throttles allow smooth, step-free acceleration, with dedicated crawl speed for precision docking.

  • Spring-Loaded Side Stabilizer Casters: Self-leveling suspension casters maintain solid 4-point floor contact, preventing tipping on ramps and turns.

  • Industrial Hydraulic Overload Bypass: Integrated pressure relief valve prevents pump strain and structural overload when encountering overweight loads.

5Seconds Electric Pallet Jack

Experience effortless material handling with the 5Seconds Electric Pallet Jack, designed to lift and transport loads up to 3,300 lbs. Equipped with powerful electric lifting and driving, an ergonomic multifunction control handle, and a long-lasting 24V/65Ah GEL battery offering 6–8 hours of advertised runtime, this pallet jack delivers smooth maneuverability, improved stability, and dependable performance in warehouses, retail spaces, and distribution centers.

See The 5Seconds Difference


The 5Seconds Electric Pallet Jack features a durable rocker-arm steel frame, efficient electric drive and lifting system, multifunction control handle, and long-runtime GEL battery. With a 3,300 lb load capacity, compact 60-inch turning radius, upright turtle-speed mode, floating balance wheels, and advanced safety features, it ensures precise handling, reduced operator fatigue, and reliable performance throughout demanding warehouse operations.

Frequently asked questions

This electric pallet jack has a maximum load capacity of 4,400 lbs, making it ideal for moving heavy pallets in warehouses, distribution centers, retail stores, and loading areas.

It features a 24V / 180Ah lead-acid battery, designed to provide reliable power and extended runtime for material handling applications.

Yes. It features fully electric lifting, lowering, and travel functions, reducing manual effort and improving efficiency when moving heavy pallets.

The forks lift to a maximum height of 7.3 inches, starting from a lowered height of 3 inches, providing 4.3 inches of lifting travel.
