6,600 lbs
Load Capacity
48" L × 27" W × 2.1" Thick
Fork Dimensions
24V / 300Ah
Battery
5.3"
Lifting Distance
SKU: 777026

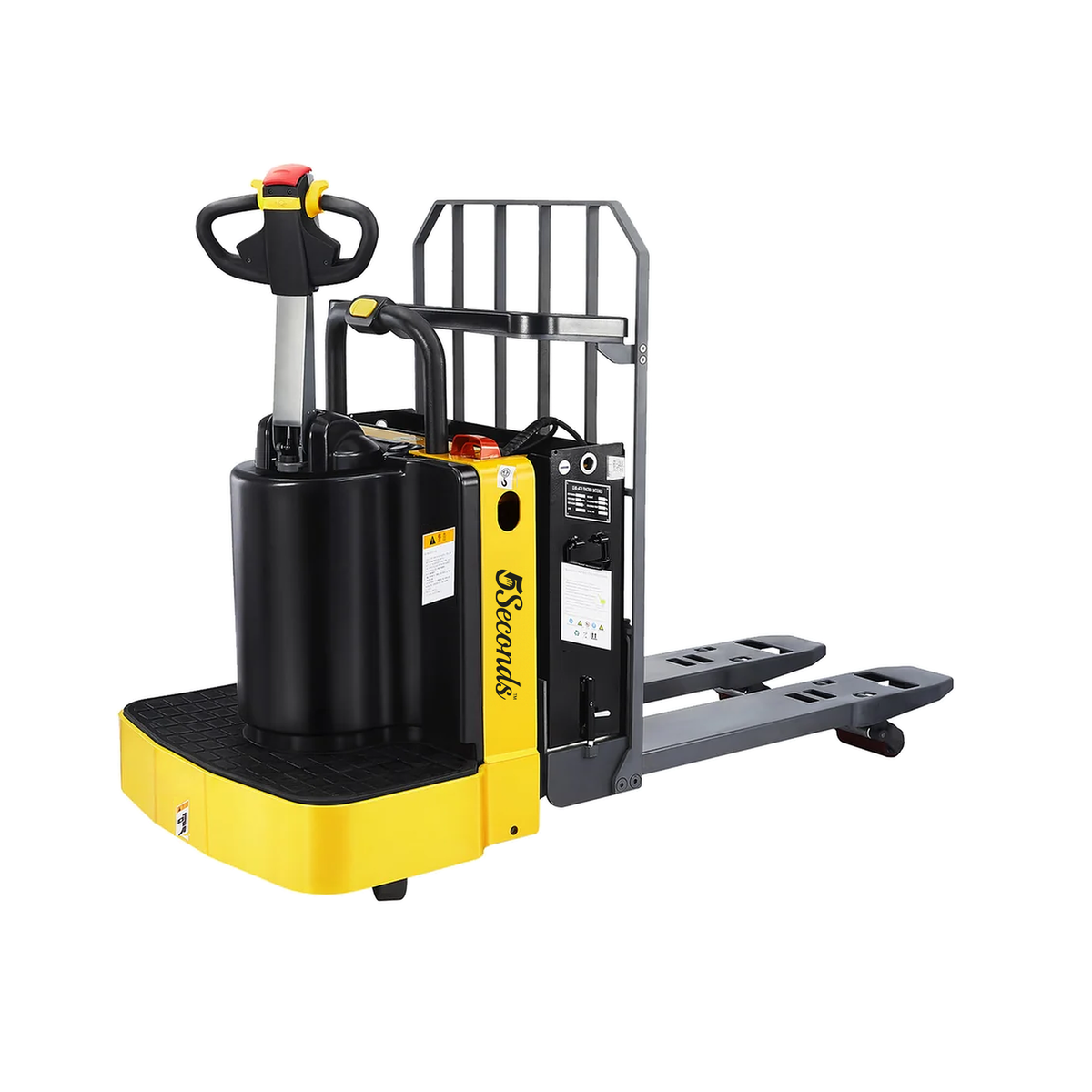

5Seconds - Electric Pallet Jack - 777026 | 6000 Lbs Capacity, 24V/300Ah Lead-Acid Battery
- Load Capacity: 6,600 lbs
- Fork Dimensions: 48" L × 27" W × 2.2" Thick
- Battery: 24V / 300Ah
- Battery Type: Lead-Acid
Specifications
Built for the job
6,600 LB HIGH-TONNAGE MATERIAL TRANSPORT
Engineered for intense industrial duty cycles, this high-capacity ride-on pallet mover easily transports up to 6,600 lbs of heavy machinery components, loaded shipping crates, and dense bulk freight across logistics hubs and distribution centers.
OPERATOR STANDING PLATFORM WITH SAFETY RAILS
Features a cushioned, shock-absorbing fold-down platform paired with sturdy protective side guard rails, allowing operators to ride comfortably at travel speeds up to 4.0 mph unladen (3.7 mph laden) to speed up long-distance warehouse runs.
RESPONSIVE ELECTRIC POWER STEERING (EPS)
Equipped with Electronic Power Steering that automatically reduces physical steering resistance, giving operators effortless, fingertip control and tight turning accuracy when maneuvering maximum 6,600 lb loads through 105" aisles.
HIGH-ENDURANCE 24V / 300Ah INDUSTRIAL BATTERY
Driven by a deep-cycle 24V / 300Ah lead-acid battery bank built to sustain full-shift continuous operations. The included 24V / 40A external charger plugs into standard 110V AC inputs for dependable overnight or inter-shift recharging.
LATERAL ROLL-OUT BATTERY EXTRACTION
The side-pull battery compartment allows operators to slide the 300Ah battery pack out sideways along built-in guide rollers, enabling quick battery swaps during multi-shift operations without requiring overhead cranes or hoists.
REINFORCED 2.2" THICK FORKS WITH 8.5" ELEVATED LIFT
Built with 2.2" thick reinforced steel forks and heavy-duty hydraulic lifting cylinders delivering an 8.5" maximum lift height (5.3" lift stroke), easily clearing dock plates, yard thresholds, and steep ramp transitions.
Key Features & Benefits:
-
Heavy 6,600 LB Load Rating: Built for demanding industrial operations that exceed standard pallet truck capacities, including metal fabrication, beverage distribution, and freight staging.
-
Electric Power Steering (EPS): Minimizes physical operator fatigue by providing power-assisted steering control at all speeds and load levels.
-
Fold-Down Ride-On Platform: Cushioned standing deck with dual protective side rails allows operators to ride safely over long horizontal transit distances.
-
High-Torque Brushless AC Traction Motor: Delivers smooth acceleration, strong laden drive power, and reduced long-term maintenance with no carbon brushes.
-
Deep-Cycle 24V / 300Ah Battery Bank: Provides generous power reserves for extended work shifts, backed by an included 40A external fast charger.
-
Side-Pull Battery Compartment: Enables fast, tool-free lateral battery changeouts between shifts using standard battery transfer tables.
-
Automatic Turning Speed Reduction: Built-in speed sensors automatically throttle down travel speed during sharp turns to maintain chassis and load stability.
-
Multifunction Instrument Display: Provides real-time visibility into battery discharge status, cumulative operating hours, and onboard fault diagnostic codes.
-
Reinforced 2.2" Solid Steel Forks: Tapered fork tips and entry guide rollers facilitate smooth engagement with standard 40" × 48" stringer and block pallets.
-
Elevated 8.5" Max Lift Clearance: Extended 5.3" vertical stroke easily negotiates uneven dock levelers and rough industrial floor transitions.
5Seconds Electric Pallet Jack
Experience effortless material handling with the 5Seconds Ride-On Electric Pallet Jack, engineered to lift and transport heavy loads up to 6,600 lbs. Equipped with a powerful AC drive system, electric power steering (EPS), multifunction smart display, and a high-capacity 24V/300Ah battery, this heavy-duty pallet jack delivers exceptional stability, smooth maneuverability, enhanced operator comfort, and reliable performance in warehouses, logistics hubs, and industrial facilities.
Lift Smarter. Move Easier. Work Faster.
SAFETY HANDLE FOR CONFIDENT OPERATION
-
Equipped with a high-quality Germany FREI handle known for durability and comfort. Its ergonomic shape and responsive controls ensure smoother operation and better handling in demanding work environments.
SIDEWAY BATTERY FOR EASY REPLACEMENT
-
The side-exit battery design allows quick and effortless replacement without lifting equipment. This setup improves daily efficiency and simplifies maintenance, especially in high-frequency usage environments.
BUILT-IN TOOLBOX FOR CONVENIENT STORAGE
-
The emergency stop switch immediately cuts power during critical situations and also serves as a power lock. This dual-function design provides an additional layer of safety, security, and operational reliability.
INTEGRATED TOOLBOX FOR EASY ACCESS & STORAGE
-
A built-in toolbox provides a handy space to store tools and accessories. This design keeps essential items within reach, improving workflow efficiency and reducing downtime during daily tasks.
See The 5Seconds Difference
The 5Seconds Ride-On Electric Pallet Jack features a reinforced steel frame, powerful hydraulic lifting system, ergonomic ride-on platform, and convenient side-pull battery. With a 6,600 lb load capacity, 73.2-inch turning radius, variable-speed controls, and advanced safety features, it delivers smooth handling, reduced operator fatigue, and dependable warehouse performance.
Frequently asked questions
This heavy-duty electric pallet jack supports loads up to 6,600 lbs, making it ideal for warehouses, distribution centers, manufacturing facilities, and heavy-duty material handling.
This is a ride-on electric pallet jack featuring a side-standing operator platform, allowing operators to ride comfortably while transporting heavy pallets over longer distances.
It features a 24V/300Ah rechargeable battery with a convenient side-pull design for easier battery replacement.
The pallet jack uses a 24V/40A external charger. Actual charging time depends on battery condition and remaining charge. A specific full-charge time is not provided in the published specifications.
