1 / 10
3,300 lbs
Load Capacity
42" L × 7.9–31.5" W × 1.4" Thick
Fork Dimensions
24V / 105Ah
Battery
118"
Max Lifting Height
SKU: 777033

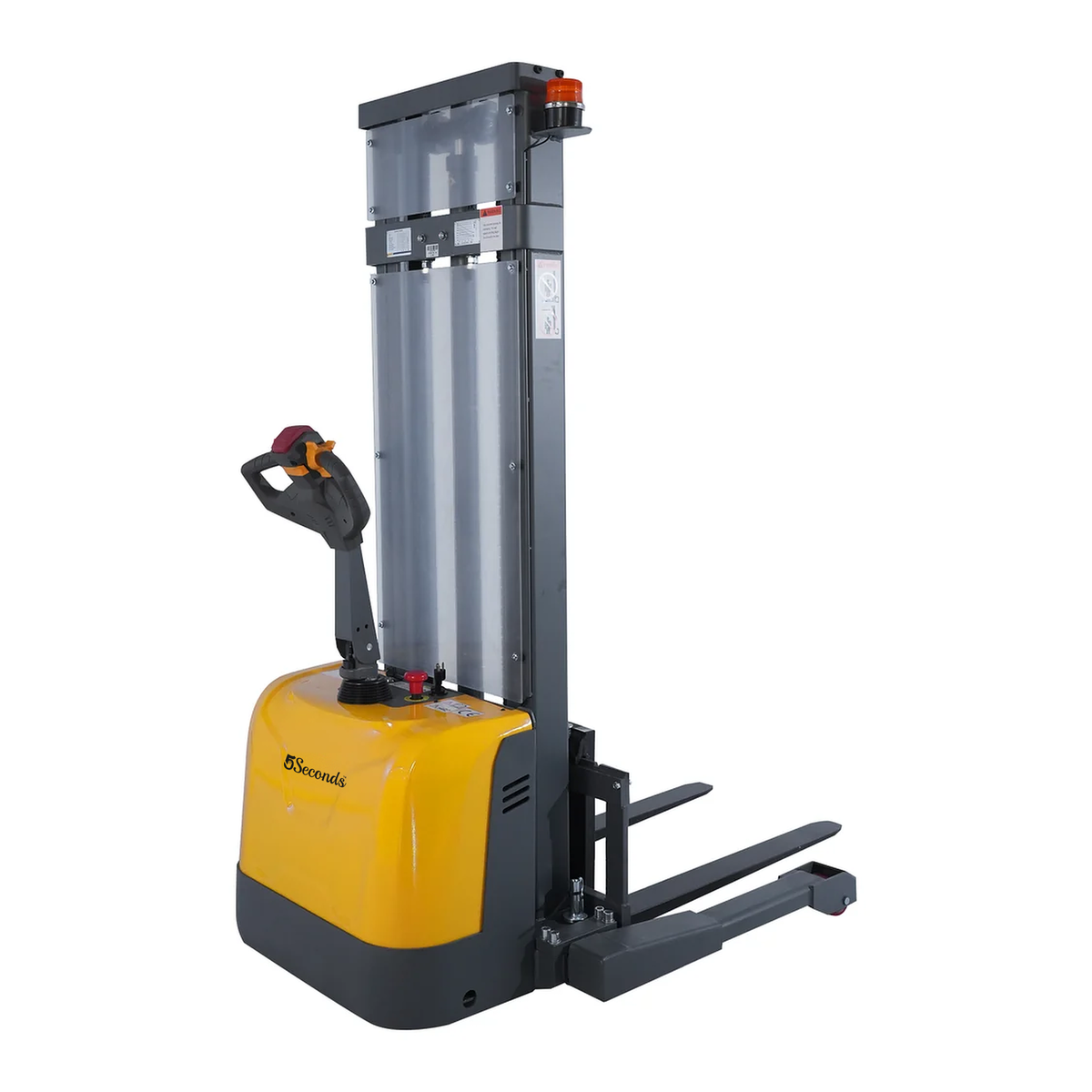

5Seconds - Electric Stacker - 777033 | 3300 Lbs Capacity, 118in Lift, 24V Gel Battery
- Load Capacity: 3,300 lbs
- Fork Dimensions: 42" L × 7.9–31.5" W × 1.4" Thick
- Battery: 24V / 105Ah
- Battery Type: Gel Battery
Specifications
Built for the job
HIGH-TIER 118" MOTORIZED PALLET ELEVATION
Built for second- and third-tier warehouse storage racks, high mezzanine delivery, and overhead staging, this full-electric walkie stacker lifts 3,300 lb pallets smoothly up to 118" (9.83 ft). Operators manage vertical lifting and lowering via sensitive electronic tiller toggles without strenuous hydraulic pumping.
DUAL-MOTOR ELECTRIC TRAVEL & STEERING
Motorized drive propulsion transports heavy palletized loads at up to 3.1 mph across long warehouse distances. Combined with responsive electric drive dynamics, it transforms taxing manual pallet transit into effortless motorized transport for higher daily freight throughput.
STRADDLE BASE FOR UNIVERSAL PALLET COMPATIBILITY
Engineered with adjustable outer straddle outriggers that extend from 45.9" to 61.6", the chassis completely straddles standard 40" × 48" pallets. This configuration gives operators full clearance to lift bottom-boarded GMA pallets, perimeter-base skids, and Euro containers without crushing lower planks.
AGILE HANDLING IN 88" AISLE FOOTPRINTS
Boasting a sharp 53" turning radius and an operational aisle requirement of just 87.8", this high-reach unit pivots smoothly through tight rack corridors and compact loading bays where standard counterbalanced forklifts cannot fit.
INDUSTRIAL 24V GEL POWER & BUILT-IN CHARGER
Powered by a high-capacity 24V / 100Ah battery system that delivers consistent lifting torque and sustained operational runtime. The integrated 24V/10A internal charger plugs directly into standard 110V commercial wall sockets, eliminating separate charging bays.
ADVANCED TILLER CONTROLS & DUAL SAFETY SYSTEMS
The ambidextrous control head integrates proportional travel throttles, a push-button turtle mode for millimeter-exact rack positioning, and an emergency belly-reversing switch. An automated electromagnetic brake holds the truck immediately on stop, while an explosion-proof velocity valve prevents free-fall in the event of hydraulic pressure drop.
Key Features & Benefits:
-
High-Reach 118" Vertical Stroke (9.83 ft): Delivers an additional 20 inches of powered lift over 98" models, easily servicing multi-tier industrial pallet racks.
-
Full-Electric Drive & Lift Performance: Motorized travel (up to 3.1 mph) and powered hydraulic lift handle 3,300 lbs with zero manual push or pump effort.
-
Universal Straddle Leg Design (45.9"–61.6"): Surrounds standard pallets externally, providing unrestricted handling for closed-bottom GMA pallets and open-face skids.
-
Ultra-Tight 53" Turning Radius: Navigates sharp corners and operates cleanly in narrow 87.8" warehouse storage aisles.
-
Maintenance-Free 24V / 100Ah GEL Battery: High-output industrial power delivery with zero acid watering, fluid maintenance, or leakage concerns.
-
Onboard 110V Wall-Plug Charger: Fully self-contained charging system with internal cord plugs directly into standard commercial 110V AC receptacles.
-
Precision Turtle / Crawl Speed Mode: Reduces travel speed instantly at the touch of a button for safe, slow-speed pallet positioning inside tight racks.
-
Laterally Adjustable 42" Forks (7.9"–31.5"): Heavy-duty solid steel forks slide easily across carriage rails to accommodate varying pallet and crate widths.
-
Ultra-Low 2.8" Lowered Entry Height: Effortlessly slides into shallow pallet openings, low-profile skids, and damaged pallets.
-
Automatic Electromagnetic Fail-Safe Brake: Engages automatically whenever the tiller handle is released or brought upright, securing loads on dock transitions.
5Seconds Full Electric Pallet Stacker
Experience effortless material handling with the 5Seconds Full Electric Pallet Stacker, engineered to lift heavy loads up to 3,300 lbs with a maximum lifting height of 118 inches. Equipped with a powerful electric drive system, adjustable forks, versatile straddle legs, and a reliable 24V/105Ah battery with a built-in charger, this compact stacker combines fully electric lifting and travel for smooth load handling, precise control, enhanced stability, and dependable performance in warehouses, retail facilities, and industrial environments.
Lift Smarter. Move Easier. Work Faster.
CONTROL SYSTEM FEATURES
-
Equipped with lift/lower buttons, emergency brake and reverse, horn, crawl speed, and vertical walking. The rubber-coated grip provides comfort in all seasons, while forward/reverse controls ensure smooth, precise handling.
MODULAR DESIGN AND LAYOUT
-
The modular design features well-organized components for easier maintenance and servicing. A built-in charger adds daily convenience, allowing efficient charging without removing the battery.
MAGNETIC CARD LOCK ACTIVATION
-
The magnetic card lock requires a swipe to start and logs each use by operator. Each card is user-specific for added security. Power can be shut off with another swipe or by pressing the emergency stop button.
FLASHING WARNING LIGHT
-
The warning light flashes during operation to alert nearby workers. This safety feature clearly signals that the stacker is in use, helping prevent accidents and improving overall workplace awareness.
See The 5Seconds Difference
The 5Seconds Full Electric Pallet Stacker features a smart multifunction handle, adjustable forks, and a stable three-point chassis. With a 3,300 lb capacity, 118-inch lift height, 53-inch turning radius, and advanced safety features, including an emergency brake, turtle speed mode, and hydraulic safety valve, it delivers effortless maneuverability, precise control, and reliable warehouse performance.
Frequently asked questions
This fully electric pallet stacker has a maximum load capacity of 3,300 lbs, making it suitable for warehouses, distribution centers, retail stockrooms, and industrial material handling applications.
The stacker has a maximum lifting height of 118 inches , making it suitable for stacking pallets and placing loads on elevated warehouse racks.
This is a fully electric pallet stacker, featuring powered lifting, lowering, and travel. Unlike semi-electric models, it does not require manual pushing to move loads.
Yes. Its adjustable forks and straddle leg design accommodate various pallet configurations, including open-bottom and closed-bottom pallets. Always verify pallet dimensions and clearance before operation.
