3,300 lbs
Load Capacity
42" L × 7.9–31.5" W × 1.4" Thick
Fork Dimensions
24V / 105Ah
Battery
130"
Max Lifting Height
SKU: 777034

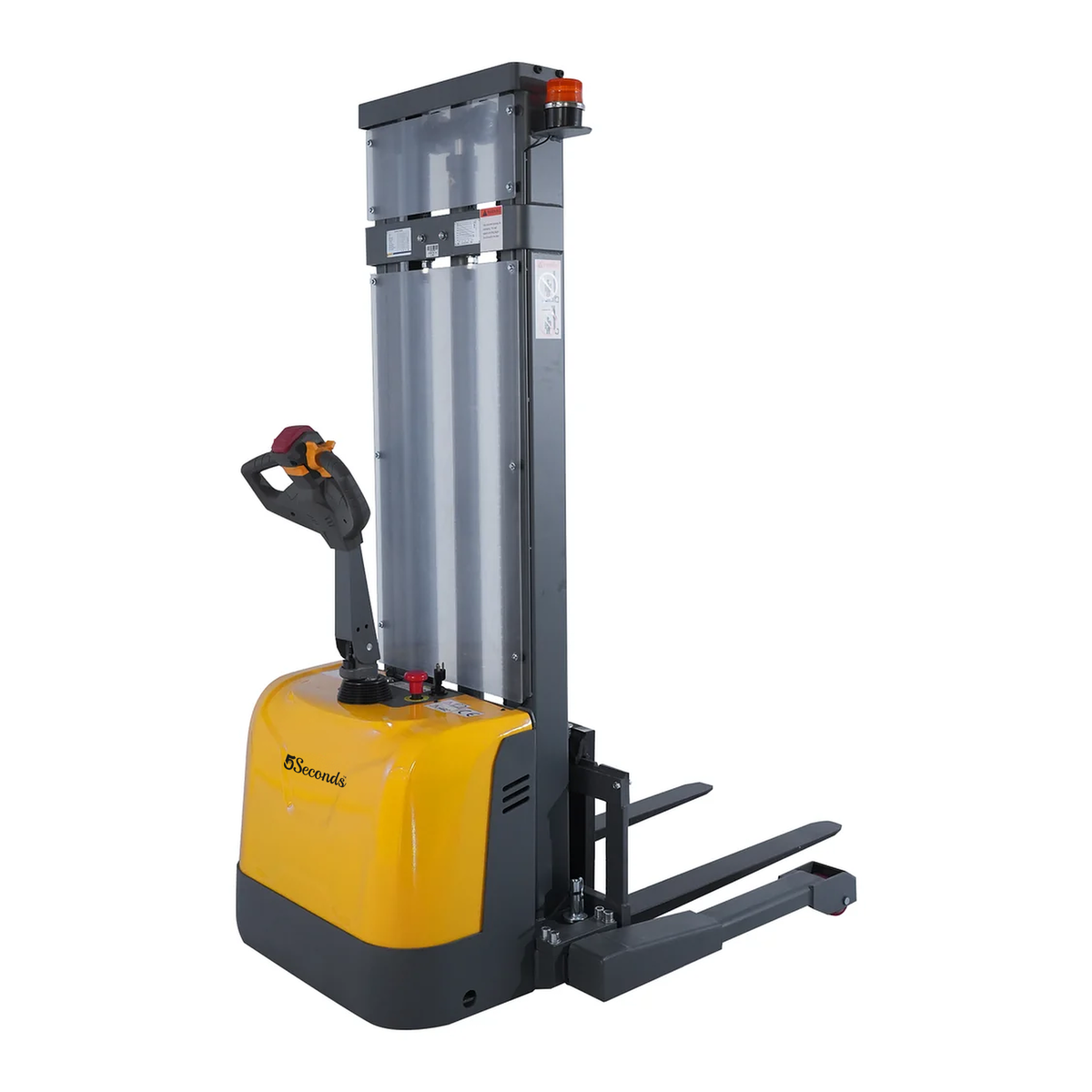

5Seconds - Electric Stacker - 777034 | 3300 Lbs Capacity, 130in Lift, 24V Gel Battery
- Load Capacity: 3,300 lbs
- Fork Dimensions: 42" L × 7.9–31.5" W × 1.4" Thick
- Battery: 24V / 105Ah
- Battery Type: Not Specified
Specifications
Built for the job
MAXIMUM 130" VERTICAL REACH FOR TALL STORAGE SYSTEMS
Designed for upper-tier pallet racking, high-bay inventory staging, and tall warehouse storage, this walkie stacker powers 3,300 lb loads to an impressive 130" (10.83 ft) lift height. Reaching a peak extended mast height of 157.3", it unlocks vertical warehouse capacity without the investment of a full-size forklift.
MOTIVE ELECTRIC PROPULSION ELIMINATES PUSHING
Equipped with an electric traction drive motor delivering speeds up to 3.1 mph, operators transport heavy freight across expansive facilities with zero manual strain. Variable throttle response provides silky-smooth acceleration across polished concrete floors.
STRUCTURALLY REINFORCED 1,450 LB STABILIZED CHASSIS
To guarantee absolute stability at nearly 11 feet of lift, the chassis features an engineered service weight of 1,450 lbs with an optimized low center of gravity. Reinforced rolled steel mast channels resist deflection and torsion when positioning maximum loads at full elevation.
EXTERNAL STRADDLE LEGS FOR BOTTOM-BOARD PALLETS
Featuring wide outriggers spanning 45.9" to 61.6", the frame wraps around pallets rather than sitting underneath them. This allows operators to easily lift closed-deck GMA pallets, bottom-boarded skids, and bulk storage bins without snagging bottom lumber.
COMPACT 53" TURNING RADIUS IN NARROW RACKS
Despite its towering lift capability, the chassis maintains an exceptionally tight 53" turning radius and navigates 87.8" aisle clearances. Operators turn effortlessly around tight rack ends and load delivery trucks where turning clearance is severely restricted.
SELF-CONTAINED 24V POWER & DUAL FAILS-SAFE SYSTEMS
Powered by a sealed 24V / 100Ah maintenance-free GEL battery pack with low-voltage discharge protection. The onboard 110V wall charger plugs into standard wall receptacles. Equipped with an electromagnetic parking brake, hydraulic velocity fuse, and emergency reversing switch for complete operational security.
Key Features & Benefits:
-
Class-Leading 130" Lift Elevation (10.83 ft): Delivers maximum vertical storage access, easily servicing third-tier pallet beams and high mezzanine loading gates.
-
Motorized Drive & Electric Lift: Full dual-powered operation handles transport and high-reach lifting without manual pushing, pulling, or jacking.
-
Reinforced 1,450 lb Counterbalanced Frame: Engineered chassis weight ensures solid floor contact and mast rigidity during top-tier pallet placement.
-
Universal Straddle Leg Base (45.9"–61.6"): Encloses pallet perimeters, ensuring complete compatibility with closed-bottom GMA, Euro, and perimeter-base pallets.
-
Agile 53" Turning Radius in 87.8" Aisles: Delivers superior tight-space navigation compared to conventional sit-down or stand-up forklifts.
-
Maintenance-Free 24V / 100Ah GEL Battery: High-capacity power delivery without acid spills, toxic fumes, or daily fluid maintenance routines.
-
Built-In 110V Commercial Wall Charger: Self-contained charger cord plugs straight into any standard 110V wall outlet for hassle-free stationless charging.
-
Adjustable Solid Steel Forks (7.9"–31.5"): 42-inch sliding forks quickly adapt to diverse skid widths, machinery crates, and standard industrial pallets.
-
Ultra-Low 2.8" Lowered Fork Height: Slides effortlessly into low-profile pallet pockets and damaged bottom boards without jamming.
-
Comprehensive Operator Safety Suite: Includes an automatic electromagnetic brake, turtle crawl mode, belly emergency reverse button, and hydraulic free-fall protection.
5Seconds Full Electric Pallet Stacker
Experience effortless material handling with the 5Seconds Full Electric Pallet Stacker, engineered to lift heavy loads up to 3,300 lbs with a maximum lifting height of 130 inches. Equipped with a powerful electric drive system, adjustable forks, versatile straddle legs, and a reliable 24V/105Ah battery with a built-in charger, this compact stacker combines fully electric lifting and travel for smooth load handling, precise control, enhanced stability, and dependable performance in warehouses, retail facilities, and industrial environments.
Lift Smarter. Move Easier. Work Faster.
CONTROL SYSTEM FEATURES
-
Equipped with lift/lower buttons, emergency brake and reverse, horn, crawl speed, and vertical walking. The rubber-coated grip provides comfort in all seasons, while forward/reverse controls ensure smooth, precise handling.
MODULAR DESIGN AND LAYOUT
-
The modular design features well-organized components for easier maintenance and servicing. A built-in charger adds daily convenience, allowing efficient charging without removing the battery.
MAGNETIC CARD LOCK ACTIVATION
-
The magnetic card lock requires a swipe to start and logs each use by operator. Each card is user-specific for added security. Power can be shut off with another swipe or by pressing the emergency stop button.
FLASHING WARNING LIGHT
-
The warning light flashes during operation to alert nearby workers. This safety feature clearly signals that the stacker is in use, helping prevent accidents and improving overall workplace awareness.
See The 5Seconds Difference
The 5Seconds Full Electric Pallet Stacker features a smart multifunction handle, adjustable forks, and a stable three-point chassis. With a 3,300 lb capacity, 130-inch lift height, 53-inch turning radius, and advanced safety features, including an emergency brake, turtle speed mode, and hydraulic safety valve, it delivers effortless maneuverability, precise control, and reliable warehouse performance.
Frequently asked questions
This fully electric pallet stacker has a maximum load capacity of 3,300 lbs, making it suitable for warehouses, distribution centers, retail stockrooms, and industrial material handling applications.
The stacker offers a maximum lifting height of 130 inches, making it suitable for stacking pallets, loading elevated warehouse racks, and organizing inventory.
This is a fully electric pallet stacker, featuring powered lifting, lowering, and travel. Unlike semi-electric models, it does not require manual pushing to move loads.
Yes. Its straddle leg design and adjustable forks accommodate various pallet configurations, including compatible open-bottom and closed-bottom pallets. Always verify pallet dimensions and support-leg clearance before purchasing.
