1 / 10
3,300 lbs
Load Capacity
42" L × 7.9–31.5" W × 1.4" Thick
Fork Dimensions
24V / 105Ah
Battery
138"
Max Lifting Height
SKU: 777035

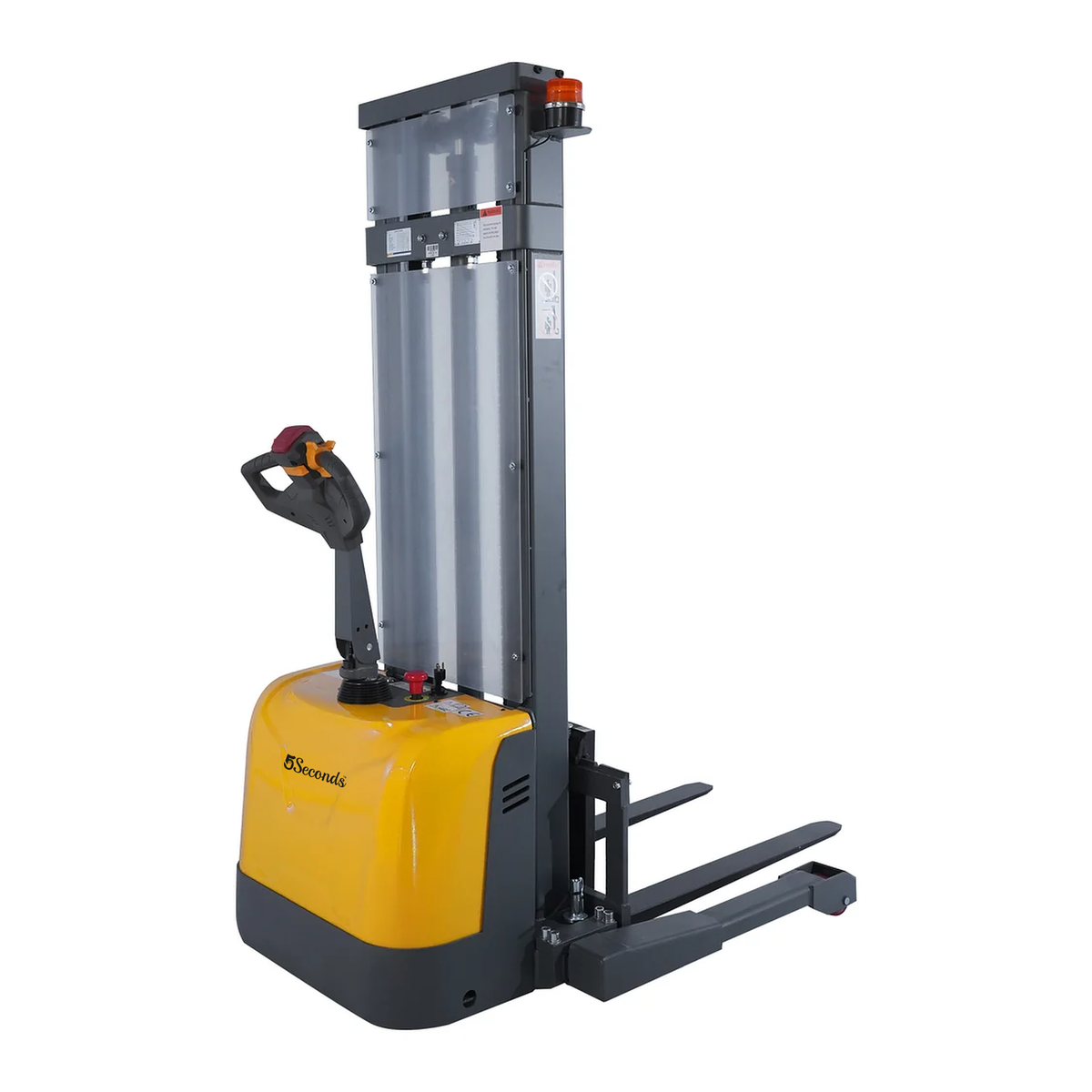

5Seconds - Electric Stacker - 777035 | 3300 Lbs Capacity, 138in Lift, 24V Gel Battery
- Load Capacity: 3,300 lbs
- Fork Dimensions: 42" L × 7.9–31.5" W × 1.4" Thick
- Battery: 24V / 105Ah
- Battery Type: Gel Battery
Specifications
Built for the job
TALL 138" VERTICAL REACH FOR UPPER-TIER WAREHOUSE STORAGE
Engineered to access high-bay warehouse racking, top-tier shelving beams, and elevated storage decks, this walkie stacker lifts 3,300 lb pallets up to an impressive 138" (11.5 ft). Reaching a peak extended mast height of 163.2", it maximizes vertical cubic warehouse space without requiring a full-size counterbalance forklift.
MOTIVE ELECTRIC TRAVEL WITH AMBIDEXTROUS THROTTLE
Featuring motorized traction propulsion reaching speeds up to 3.1 mph, operators transport loaded pallets across long aisle runs with zero manual exertion. Smooth electronic speed regulation ensures controlled starts, gentle stops, and dependable travel over warehouse floors.
RIGID 1,446 LB STRENGTH-REINFORCED CHASSIS
To ensure absolute stability when holding 3,300 lbs at an 11.5-foot elevation, the chassis is built with high-tensile rolled steel mast sections and an engineered 1,446 lb service weight. A low center of gravity resists mast deflection and stabilizes pallet placement on top beam levels.
STRADDLE BASE FOR UNIVERSAL PALLET HANDLING
Equipped with outer straddle outriggers adjustable from 45.9" to 61.6", the base wraps around the exterior of pallets rather than rolling underneath. This provides complete clearance to lift bottom-boarded GMA pallets, double-face wooden skids, and bulk containers without binding.
53" SHARP TURNING RADIUS IN 88" AISLES
Despite its massive vertical capability, this unit retains an ultra-compact 53" turning radius and operates smoothly within 87.8" storage aisles. It pivots sharply around tight rack corners and operates inside confined shipping bays where larger machinery cannot maneuver.
24V GEL POWER SYSTEM WITH ONBOARD 110V CHARGER
Powered by a sealed, maintenance-free 24V / 100Ah GEL battery pack designed for consistent daily lifting cycles without acid maintenance or leakage risks. The integrated 110V commercial wall charger plugs directly into standard wall outlets, eliminating dedicated charging stations.
Key Features & Benefits:
-
Towering 138" Max Lift Elevation (11.5 ft): Reaches high fourth-tier pallet beams and mezzanine gates with a maximum extended mast height of 163.2".
-
Dual-Powered Electric Drive & Hydraulic Lift: Fully motorized travel (up to 3.1 mph) and electric hydraulic lift eliminate all manual pulling, pushing, and pumping.
-
Engineered 1,446 lb Ballast Chassis: Provides rigid floor anchoring and minimal mast flex while positioning maximum-rated loads at full 11.5 ft height.
-
Universal Straddle Leg Design (45.9"–61.6"): Encloses pallet perimeters to provide unrestricted handling for closed-bottom GMA, Euro, and perimeter-board pallets.
-
Tight 53" Turning Radius in 87.8" Aisles: Delivers superior aisle mobility, navigating tight rack corridors with ease.
-
Sealed Maintenance-Free 24V / 100Ah GEL Battery: Delivers high-torque power without acid spills, toxic fumes, or daily watering requirements.
-
Self-Contained 110V Onboard Wall Charger: Built-in internal charger cord plugs straight into any conventional 110V AC receptacle for effortless overnight replenishment.
-
Laterally Sliding 42" Steel Forks (7.9"–31.5"): Heavy-duty solid steel forks adjust quickly along carriage rails to balance diverse pallet and crate dimensions.
-
Low 2.8" Lowered Entry Profile: Slides cleanly into low-clearance pallet pockets and shallow skids without catching.
-
Full Operator Protection & Fail-Safe Suite: Features an automatic electromagnetic parking brake, turtle crawl speed mode, belly reversing button, and explosion-proof hydraulic safety lock.
Frequently asked questions
This fully electric pallet stacker has a maximum load capacity of 3,300 lbs, making it suitable for warehouses, distribution centers, retail stockrooms, and industrial material handling applications.
The stacker offers a maximum lifting height of 138 inches, making it suitable for stacking pallets, loading elevated warehouse racks, and organizing inventory.
This is a semi-electric pallet stacker. It uses battery-powered hydraulic lifting and lowering, while operators manually push or pull the stacker to move loads.
Yes. Its straddle leg design and adjustable forks accommodate various pallet configurations, including compatible open-bottom and closed-bottom pallets. Always verify pallet dimensions and support-leg clearance before purchasing.
