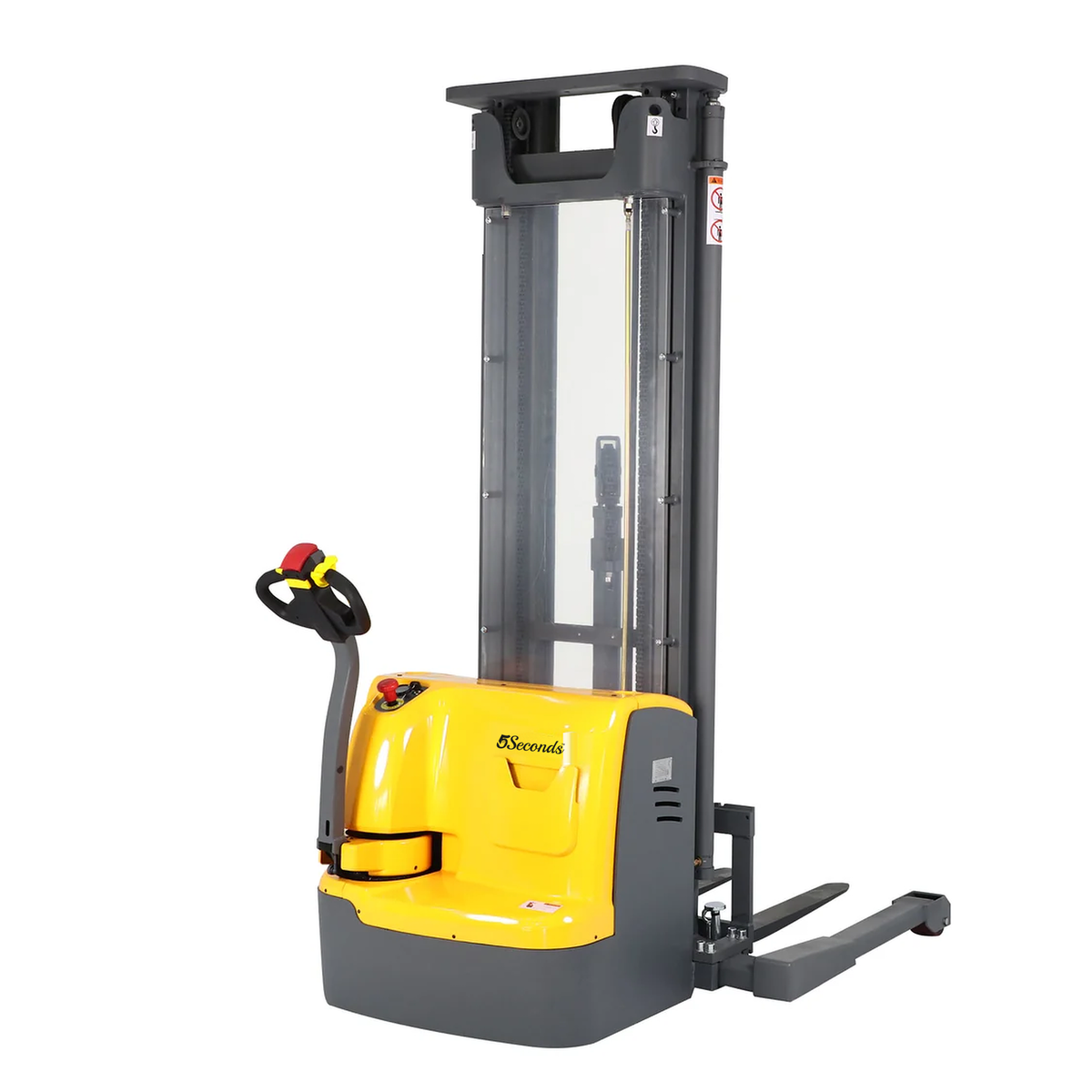

5Seconds - Electric Stacker - 777036 | 3300 Lbs Capacity, 177in Lift, 24V Lead-Acid Battery 1 / 11
3,300 lbs Load Capacity
42" L × 7.9–31.5" W × 1.4" Thick Fork Dimensions
24V / 200Ah Battery
177" Max Lifting Height

SKU: 777036

5Seconds - Electric Stacker - 777036 | 3300 Lbs Capacity, 177in Lift, 24V Lead-Acid Battery

$9,499.99 ea.
  • Load Capacity: 3,300 lbs
  • Fork Dimensions: 42" L × 7.9–31.5" W × 1.4" Thick
  • Battery: 24V / 200Ah
  • Battery Type: Lead-Acid
Processing time: ships in 2 business days
Spec sheet Warranty
Available for pick-up

Specifications

Load Capacity 3,300 lbs
Fork Dimensions 42" L × 7.9–31.5" W × 1.4" Thick
Battery 24V / 200Ah
Battery Type Lead-Acid
Load Center 23.6"
Turning Radius 68.1"
Aisle Width 101.1"
Inside Fork Width 0.1"–23.6"
Overall Width 46.9"–62.3"
Overall Length 79.5"
Max Lifting Height 177"
Mast Height (Lowered/Extended) 83.5" / 199.2"
Fork Lowered Height 2.8"
Charger 24V / 30A External
Travel Speed (L/U) 3.6 / 3.7 mph
Lifting Speed (L/U) 3.5 / 6.3 inch/s
Lowering Speed (L/U) 6.3 / 5.9 inch/s
Service Weight 2,790 lbs

Built for the job

TOWERING 177" HIGH-REACH PALLET ELEVATION

Built for multi-tiered industrial warehouse racking, high-bay inventory distribution, and mezzanine staging, this heavy-duty walkie stacker elevates 3,300 lb pallets up to an exceptional 177" (14.75 ft). Reaching a peak extended mast height of 199.2", it delivers true forklift-level high-reach capability in an agile walk-behind design.

BRUSHLESS AC DRIVE SYSTEM WITH REGENERATIVE BRAKING

Powered by a heavy-duty vertical AC drive motor, this stacker delivers brisk 3.7 mph transit speeds with high starting torque and zero carbon brush maintenance. Integrated regenerative braking smoothly recaptures energy during deceleration while reducing mechanical brake wear across intensive shifts.

RIGID 2,790 LB BALLAST CHASSIS WITH 4-POINT STABILITY

To ensure unyielding floor stability at heights near 15 feet, the unit is constructed on a 2,790 lb industrial steel chassis with a 4-point wheel layout and wide-view mast channels. Side-mounted lift cylinders and rigid structural framing eliminate mast twist and load wobble during top-tier placement.

HIGH-CAPACITY 24V / 200Ah SIDE-PULL BATTERY ARCHITECTURE

Equipped with a high-capacity 24V / 200Ah battery system designed for extended multi-shift operation. A convenient side-sliding battery compartment allows lateral roll-out for rapid battery changeovers, supported by an included high-output 24V / 30A external charger that plugs into standard 110V wall power.

STRADDLE BASE FOR BOTTOM-BOARDED PALLETS

Featuring heavy-duty outer straddle outriggers spanning 46.9" to 62.3", the chassis completely surrounds pallets, allowing unobstructed fork entry for closed-bottom GMA pallets, double-face wooden skids, and bulk storage bins without binding lower deckboards.

DUAL-ZONE SAFETY LOGIC & PROPORTIONAL LIFT CONTROL

Features an intuitive tiller with electronic proportional lift/lower toggles, crawl-speed turtle mode, and an emergency belly reverse switch. Automatic safety logic reduces drive speed when forks exceed 11.8" elevation, while the electromagnetic brake engages automatically whenever the handle enters vertical or horizontal boundary zones.

Key Features & Benefits:

  • Extreme 177" Max Lift Height (14.75 ft): Accesses fourth- and fifth-tier pallet rack beams with an impressive 199.2" fully extended mast ceiling.

  • High-Torque Brushless AC Drive Motor: Delivers rapid 3.7 mph travel, excellent ramp responsiveness, and low-noise operation with minimal maintenance.

  • Heavy Industrial 2,790 lb Ballast Frame: Provides solid counterweight mass and 4-point floor stability for safe, wobble-free stacking at full lift elevation.

  • Quick Side-Pull Battery Compartment: Lateral slide-out tray enables rapid battery swaps for multi-shift industrial facilities without overhead hoist equipment.

  • High-Capacity 24V / 200Ah Power System: Sustains demanding, high-cycle lifting shifts; includes an external 30A fast charger compatible with standard 110V outlets.

  • Universal Straddle Leg Base (46.9"–62.3"): Wraps around pallet perimeters for seamless handling of closed-bottom GMA pallets and open-face skids.

  • Automated High-Elevation Speed Reduction: Drive speed automatically throttles down when forks are elevated above 11.8" to prevent tipping.

  • Regenerative Braking & Auto Parking Brake: Automatically recaptures kinetic power during slowing and locks the drive wheel securely on stops and grades.

  • Adjustable 42" Solid Steel Forks (7.9"–31.5"): Accommodates varied skid dimensions and specialty crating with a low 2.8" lowered fork entry profile.

  • Smart Digital Multi-Function Display: Provides real-time hour meter tracking, battery discharge status, and integrated diagnostic fault codes.

Frequently asked questions

This fully electric pallet stacker has a maximum load capacity of 3,300 lbs, making it suitable for warehouses, distribution centers, retail stockrooms, and industrial material handling applications.

The stacker offers a maximum lifting height of 177 inches, making it suitable for high-rack pallet stacking, elevated storage, and warehouse inventory management.

This is a fully electric pallet stacker, featuring powered lifting, lowering, and travel. Unlike semi-electric models, it does not require manual pushing to move loads.

Yes. Its straddle leg design and adjustable forks accommodate various pallet configurations, including compatible open-bottom and closed-bottom pallets. Always verify pallet dimensions and support-leg clearance before purchasing.
