3,300 lbs
Load Capacity
42" L × 7.9–31.5" W × 1.4" Thick
Fork Dimensions
24V / 200Ah
Battery
220"
Max Lifting Height
SKU: 777037

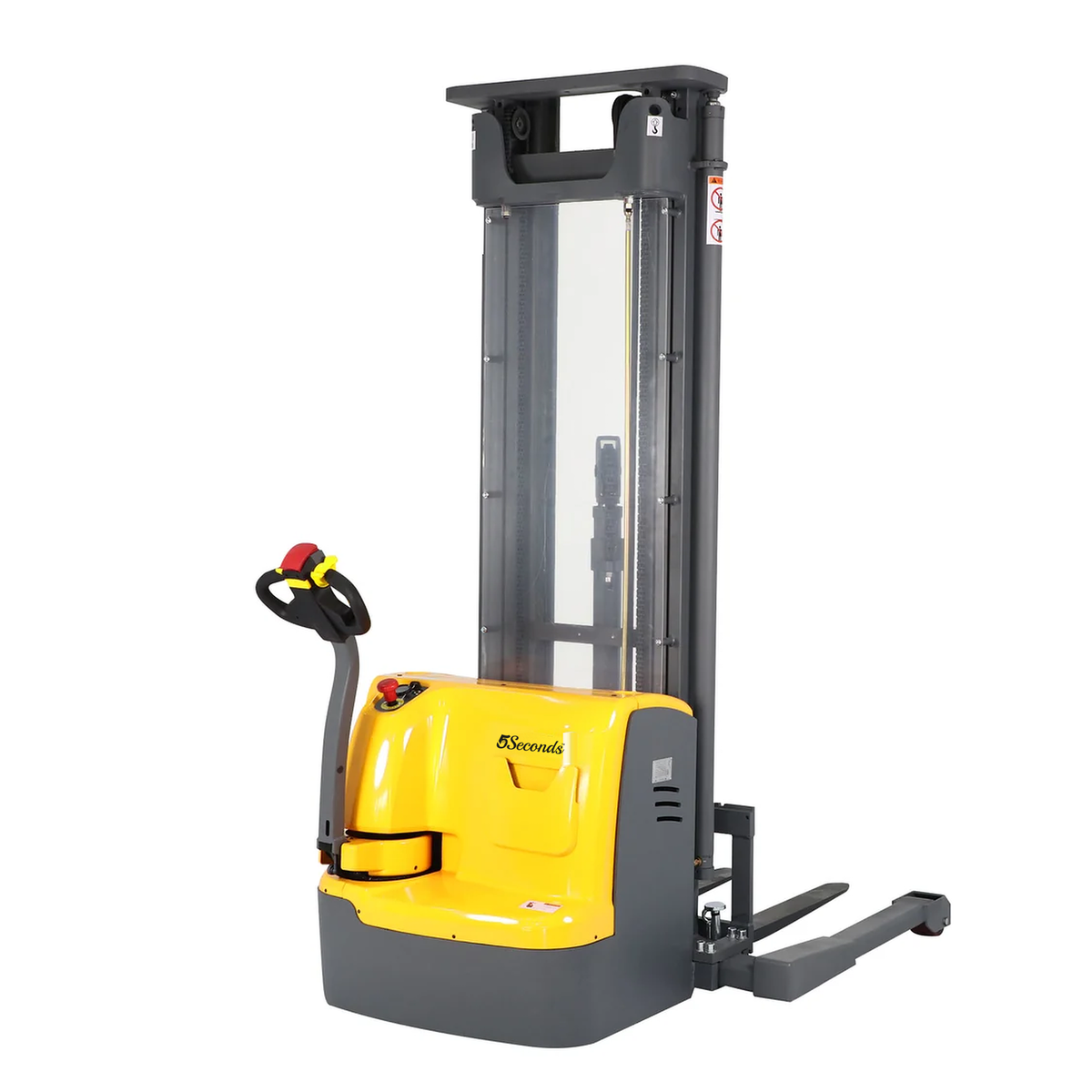

5Seconds - Electric Stacker - 777037 | 3300 Lbs Capacity, 220in Lift, 24V Lead-Acid Battery
- Load Capacity: 3,300 lbs
- Fork Dimensions: 42" L × 7.9–31.5" W × 1.4" Thick
- Battery: 24V / 200Ah
- Battery Type: Lead-Acid
Specifications
Built for the job
INDUSTRY-LEADING 220" LIFT FOR TALL RACK STORAGE
Engineered to unlock high-bay warehouse storage without the capital expense or footprint of a full-size reach truck, this industrial walkie stacker lifts 3,300 lb pallets up to an exceptional 220" (18.33 ft). Reaching a peak extended mast height of 242.5" (20.2 ft), it easily accesses top-tier pallet beams in dense distribution facilities.
HIGH-TORQUE BRUSHLESS AC DRIVE SYSTEM
Powered by a vertical brushless AC motor, this stacker delivers brisk 3.7 mph travel speeds with strong starting torque and smooth acceleration under full load. The brushless architecture eliminates carbon brush replacements, while regenerative braking recaptures kinetic energy during deceleration and reduces mechanical brake wear.
SOLID 2,980 LB BALLAST FRAME FOR HIGH-ELEVATION RIGIDITY
To maintain absolute stability and resist mast deflection when staging heavy loads over 18 feet in the air, the truck features an engineered 2,980 lb service weight and a wide 4-point chassis stance. Reinforced rolled channel steel masts and dual side-mounted lift cylinders provide rigid vertical tracking and exceptional operator line-of-sight.
HIGH-OUTPUT 24V / 200Ah POWER WITH SIDE-SLIDE TRAY
Equipped with an industrial 24V / 200Ah battery system built for rigorous multi-shift duty cycles. A side-access door and sliding battery tray allow lateral extraction for fast battery swaps without overhead hoists, complemented by an included 24V / 30A external charger compatible with standard 110V wall outlets.
STRADDLE BASE FOR UNIVERSAL PALLET CLEARANCE
Heavy-duty outer straddle legs adjust from 46.9" to 62.3", allowing the chassis to completely surround standard 40" × 48" pallets. This perimeter design ensures smooth, unhindered fork entry for closed-deck GMA pallets, double-face wooden skids, and bulk industrial containers without binding lower deckboards.
DUAL-ZONE SAFETY LOGIC & PROPORTIONAL LIFT CONTROL
The operator-aligned ergonomic tiller features sensitive proportional lift/lower toggles, turtle crawl speed for millimeter-accurate high-rack placement, and an emergency belly reverse switch. Built-in speed reduction automatically limits travel speed when forks exceed 11.8" elevation, while automatic electromagnetic braking secures the truck the instant the handle is released.
Key Features & Benefits:
-
Extreme 220" Max Vertical Elevation (18.33 ft): Delivers unmatched high-bay reach in a walk-behind unit, extending to a 242.5" peak mast height for top-tier pallet racking.
-
Maintenance-Free Brushless AC Drive Motor: Delivers rapid 3.7 mph travel speeds, high ramp climbing torque, and smooth acceleration with zero brush upkeep.
-
Heavy Industrial 2,980 lb Ballast Frame: Provides rock-solid floor stability and torsional resistance while positioning 3,300 lb loads at maximum elevation.
-
Side-Pull Battery Compartment: Lateral sliding compartment simplifies battery maintenance and allows rapid battery changeovers for round-the-clock facility shifts.
-
High-Capacity 24V / 200Ah Battery Bank: Sustains intensive, multi-cycle warehouse shifts; includes an external 30A rapid charger compatible with standard 110V power.
-
Universal Straddle Leg Perimeter (46.9"–62.3"): Surrounds pallets externally, allowing effortless entry into closed-bottom GMA pallets and open skids.
-
Automatic High-Lift Speed Throttling: Electronic sensors automatically reduce travel speed whenever the fork carriage rises above 11.8" for enhanced stability.
-
Regenerative Braking & Auto Parking Lock: Seamlessly recaptures braking energy to extend runtimes and holds the chassis stationary on loading docks and warehouse slopes.
-
Sliding Adjustable 42" Steel Forks (7.9"–31.5"): Adapts quickly across carriage rails to accommodate varied skid widths, custom crates, and low-profile 2.8" pallet pockets.
-
Smart Digital Multi-Function Dashboard: Displays live battery discharge levels, working hour meter tracking, and instant diagnostic fault codes for rapid maintenance.
Frequently asked questions
This fully electric pallet stacker has a maximum load capacity of 3,300 lbs, making it suitable for warehouses, distribution centers, retail stockrooms, and industrial material handling applications.
The stacker offers a maximum lifting height of 220 inches (18.3 feet), making it ideal for high-density warehouse storage, elevated pallet racks, and multi-level inventory management.
This is a fully electric pallet stacker, featuring powered lifting, lowering, and travel. Unlike semi-electric models, it does not require manual pushing to move loads.
Yes. Its adjustable straddle legs and forks accommodate various pallet configurations, including compatible standard open-bottom and closed-bottom pallets. The straddle legs move around the pallet base, allowing the forks to lift loads without interference.
