3,300 lbs
Load Capacity
42" L × 11.6–36.6" W × 2.4" Thick
Fork Dimensions
12V / 100Ah
Battery
118"
Max Lifting Height
SKU: 777031

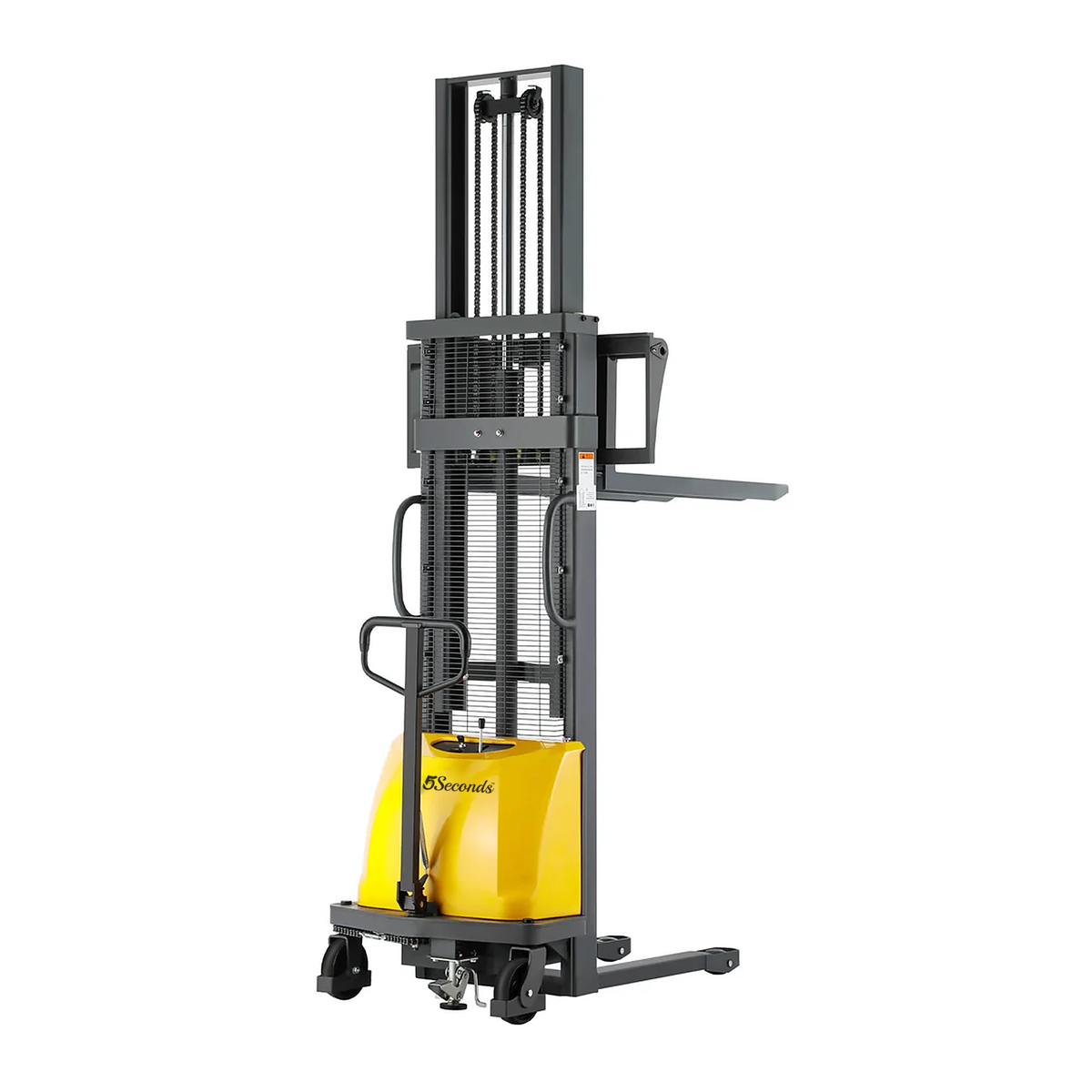

5Seconds - Semi-Electric Stacker - 777031 | 3300 Lbs Capacity, 118in Lift, Gel Battery
- Load Capacity: 3,300 lbs
- Fork Dimensions: 42" L × 11.6–36.6" W × 2.4" Thick
- Battery: 12V / 100Ah
- Battery Type: Gel Battery
Specifications
Built for the job
STREAMLINED FIXED-LEG FRAMEWORK FOR OPEN-BOTTOM PALLETS
Engineered with a streamlined 38.1" outer chassis and fixed base legs, this stacker slides directly under open-face skids, euro-style containers, and bottomless pallets. Without cumbersome outer straddle legs, operators gain unobstructed access to tight storage bays and dense pallet clusters.
POWERED 118" VERTICAL LIFT CAPACITY
Equipped with a robust 1.5kW hydraulic pump motor, this unit eliminates manual pumping to elevate 3,300 lb industrial loads up to 118" (9.83 ft) with fingertip lever control. Ideal for stocking mezzanine levels, feeding assembly machines, and servicing mid-to-high warehouse racking.
LIGHTWEIGHT 960 LB CHASSIS FOR EASY MANUAL POSITIONING
At just 960 lbs total service weight—over 200 lbs lighter than comparable straddle units—this stacker substantially reduces operator strain during manual transit. Combined with smooth-rolling polyurethane wheels, pushing and pulling across level concrete floors remains agile and low-effort.
ADJUSTABLE 42" FORK SPAN ON CARRIAGE RAIL
Heavy-duty 42" steel forks adjust laterally along the front carriage plate from 11.6" to 36.6" outer width (0.4" to 25.4" internal gap). This allows operators to balance narrow production crates, custom industrial bins, and standard open-bottom skids securely.
PLUG-AND-GO 12V ONBOARD CHARGING
Powered by a sealed 12V / 100Ah battery with low-voltage cut-off protection to safeguard cell longevity. The integrated 110V internal charger connects directly to standard commercial wall outlets, eliminating the expense and footprint of separate charging stations.
PRECISION DESCENT & POSITIVE FOOT BRAKING
Features a finely calibrated manual lowering valve that provides feather-touch control when resting delicate goods on high shelves. An accessible dual mechanical foot brake on the rear steering casters firmly locks the frame during high-reach pallet placement.
Key Features & Benefits:
-
Fixed-Leg Compact Chassis (38.1" Width): Fits neatly between tight staging racks and narrow aisles without requiring the wide clearance zones needed by straddle trucks.
-
Dedicated Open-Skid Compatibility: Enters open-bottom standard skids and Euro pallets straight on, eliminating outer-straddle floor obstructions.
-
High-Elevation 118" Lift Height: Extends full 3,300 lb rated loads up to 9.83 feet, enabling efficient vertical storage utilization in compact warehouse footprints.
-
Reduced 960 lb Service Weight: Significantly lowers rolling resistance and operator fatigue when navigating stockrooms and workshop floors.
-
Adjustable Fork Spread (11.6"–36.6"): Quick-slide 42" forks adapt instantly to diverse load profiles, component bins, and custom manufacturing containers.
-
Heavy-Duty 1.5kW Electric Hydraulic Pump: Provides dependable, consistent lifting speed without strenuous manual jacking.
-
Integrated 110V Wall-Receptacle Charger: Built-in internal charger cord plugs into any standard commercial AC outlet for convenient overnight charging.
-
Low-Discharge Battery System: Built-in electrical protection automatically shields the 12V / 100Ah battery from deep discharge damage.
-
Precision Mechanical Chain Steering: Provides direct, positive steering feedback and a tight 56.1" turning radius for agile maneuvering.
-
Explosion-Proof Hydraulic Safety Valve: Prevents rapid or uncontrolled mast descent in the event of unexpected hydraulic line pressure loss.
-
Caster Floor Lock Brakes: Positive-locking mechanical foot brakes secure the chassis in place while elevating and lowering heavy loads.
5Seconds Semi Electric Pallet Jack
Experience effortless material handling with the 5Seconds Semi-Electric Pallet Stacker, engineered to lift heavy loads up to 3,300 lbs with a maximum lifting height of 118 inches. Equipped with a powerful 1.5kW hydraulic lifting motor, adjustable forks, sturdy fixed legs, and a reliable 12V/100Ah battery, this heavy-duty stacker combines electric lifting with manual push operation for smooth load handling, precise lifting control, enhanced stability, and dependable performance in warehouses, retail facilities, and industrial environments.
Lift Smarter. Move Easier. Work Faster.
SIMPLE OPERATION LEVER
-
The user-friendly control lever makes daily operation easier with smooth, responsive handling. Its intuitive design minimizes operator fatigue, improves accuracy, and ensures efficient performance during lifting and maneuvering tasks.
RUBBER-WRAPPED HANDLE
-
The handle features a high-quality rubber coating for a soft, secure, non-slip grip. It provides comfortable handling in all seasons, including cold weather, while reducing hand fatigue during prolonged use.
SPECIAL CHAIN DESIGN
-
The mast features a specially engineered, high-strength chain for smoother and more stable lifting. Its durable construction enhances safety, minimizes wear, and ensures dependable performance in demanding working conditions.
SPRING STRUCTURE DESIGN
-
The spring structure improves shock absorption and stability during operation. It reduces vibrations, protects internal components, and supports smoother, more reliable performance in challenging work environments.
See The 5Seconds Difference
The 5Seconds Semi-Electric Pallet Stacker features a reinforced steel mast, adjustable forks, and fixed legs for open-bottom pallets. With a 3,300 lb capacity, 118-inch lift height, 56.1-inch turning radius, and built-in safety features, it ensures stable lifting, precise control, and reliable warehouse performance.
Frequently asked questions
This semi-electric pallet stacker has a maximum lifting capacity of 3,300 lbs, making it suitable for warehouses, manufacturing facilities, retail stockrooms, and industrial material handling applications.
The stacker has a maximum lifting height of 118 inches , making it suitable for stacking pallets and placing loads on elevated warehouse racks.
This is a semi-electric pallet stacker. It uses battery-powered hydraulic lifting and lowering, while operators manually push or pull the stacker to move loads.
This fixed-leg pallet stacker is designed for standard open-bottom pallets and compatible skids only. It is not suitable for closed-bottom or solid-deck pallets. Always verify pallet compatibility before purchasing.
