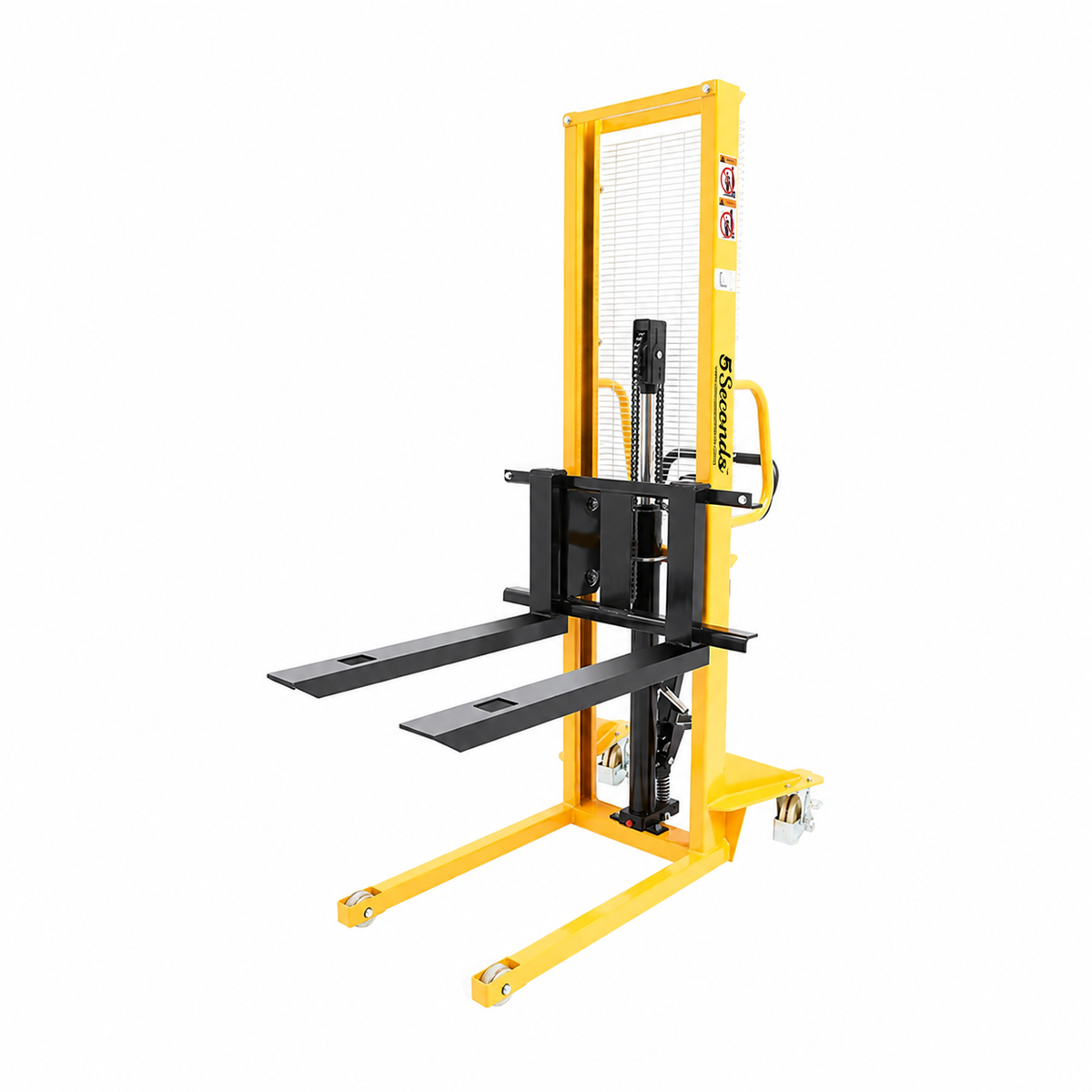

Arrow Manual Pallet Stacker, 777014 | 1,100 Lbs Capacity, 63" Maximum Lift 1 / 6
1,100 lbs Load Capacity
31.5" L × 7.9–29.3" W × 1.9" Thick Fork Dimensions
54.3" Overall Length
63" Max Lifting Height

5Seconds Brand·SKU 777014

Arrow Manual Pallet Stacker, 777014 | 1,100 Lbs Capacity, 63" Maximum Lift

$1,349.99 ea.
  • Load Capacity: 1,100 lbs
  • Fork Dimensions: 31.5" L × 7.9–29.3" W × 1.9" Thick
  • Overall Length: 54.3"
  • Max Lifting Height: 63"
Processing time: ships in 2 business days
Spec sheet Warranty
Available for pick-up

Specifications

Load Capacity 1,100 lbs
Fork Dimensions 31.5" L × 7.9–29.3" W × 1.9" Thick
Overall Length 54.3"
Max Lifting Height 63"
Turning Radius 46.4"
Load Center 19.7"
Load Center 19.7"
Aisle Width 78.6"
Inside Fork Width 0.4"–21.5"
Fork Lowered Height 3.2"
Overall Width 31.5"
Mast Height (Lowered/Extended) 78.3" / 79.1"
Wheel Type Single Wheel
Fork Material Channel Steel Forks
Service Weight 363 lbs


5Seconds Heavy-Duty Manual Pallet Stacker


Standard mast and fork design

  • Designed with standard fork dimensions for compatibility with common U.S. pallet sizes.
  • Supports smooth stacking, lifting, and load handling across warehouse operations.

Fixed forks for stable handling

  • Fixed fork construction provides added strength and stability during lifting and transport.
  • Helps keep loads properly aligned for safer, more controlled handling.

Hand and foot lifting operation

  • Dual lifting controls allow operation by either hand or foot.
  • Gives operators added flexibility while helping reduce fatigue during repeated lifting tasks.

Compact design for versatile use

  • Compact frame and tight turning capability make it easier to maneuver in confined spaces.
  • Well suited for warehouses, workshops, loading areas, retail backrooms, and general material handling.


 See The 5Seconds Difference

Compared with a standard manual stacker, the 5Seconds Arrow Manual Pallet Stacker, is built with a heavy-duty steel mast, fixed forks for added stability, and smooth manual lifting controls for dependable daily use. With a 1,100 lbs load capacity and 63" maximum lift height, it is designed for warehouses, workshops, stockrooms, and industrial facilities that need reliable pallet lifting, stacking, and positioning.

Frequently asked questions

The manual pallet stacker can handle loads up to 1,100 lbs, making it suitable for pallet lifting, stacking, and positioning in warehouses, stockrooms, and light industrial applications.

The forks can be raised to a maximum height of 63 inches, allowing operators to position loads on elevated storage areas and work surfaces

The stacker features a dual lifting system, allowing the forks to be raised using either the hand control or foot pedal for more convenient operation

No. It is a manual hydraulic pallet stacker, so no battery or electrical power is required. This makes it suitable for everyday indoor material handling where simple, dependable operation is preferred
