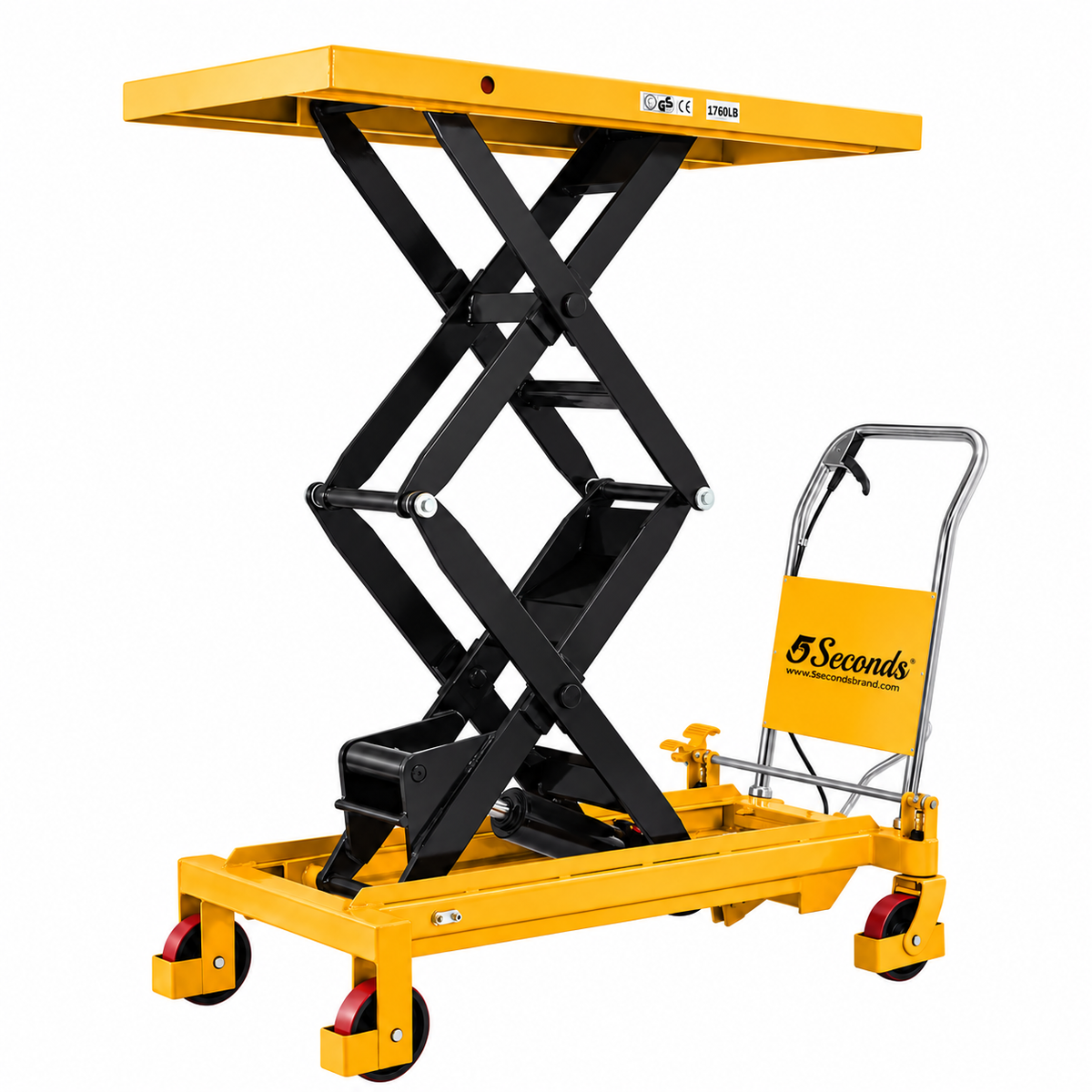

Arrow Heavy Duty Double Scissor Lift Table, 777013 | 1760 Lbs Capacity 1 / 6
1,760 lbs Load Capacity
48" × 24" Table Size
59" Max Lifting Height
40.3" Lift Height

5Seconds Brand·SKU 777013

Arrow Heavy Duty Double Scissor Lift Table, 777013 | 1760 Lbs Capacity

$999.99 ea.
  • Load Capacity: 1,760 lbs
  • Table Size: 48" × 24"
  • Max Lifting Height: 59"
  • Lift Height: 40.3"
Processing time: ships in 2 business days
Spec sheet Warranty
Available for pick-up

Specifications

Load Capacity 1,760 lbs
Table Size 48" × 24"
Max Lifting Height 59"
Lift Height 40.3"
Lowered Height 18.7"
Foot Pedal to Max Height ≤70 cycles
Foot Guard Yes
Foldable Handle No
Service Weight 480 lbs
Package Size 58" × 32" × 23"

The 5Seconds Arrow Heavy Duty Double Scissor Lift Table is built for safe, efficient lifting and positioning of heavy loads in warehouses, workshops, and industrial facilities.

Built For Heavy Lifting and Reliable Performance


Reinforced double scissor arm design

  • Heavy-duty double scissor mechanism provides enhanced strength and load stability.
  • Built to maintain reliable support during repeated lifting operations.

Ergonomic handle for comfortable control

  • Sturdy handle provides a comfortable grip and improved maneuverability.
  • Helps reduce operator fatigue during frequent material handling tasks.

Durable foot pedal for easy lifting

  • Heavy-duty foot pedal enables smooth and efficient hydraulic lifting.
  • Designed for repeated use with better control and reduced operator effort.

Reinforced frame for lasting durability

  • Solid steel construction provides excellent structural strength and stability.
  • Built for dependable performance in demanding warehouse and industrial environments.


 See The 5Seconds Difference

Unlike a standard lift table, the 5Seconds Double Scissor Lift Table is built with a heavy-duty steel frame, smooth hydraulic lifting system, stable scissor mechanism, and easy-roll casters for better control and mobility. With a 1,760 lbs load capacity, it is designed for reliable lifting, positioning, and material handling in warehouses, workshops, and industrial environments.

Frequently asked questions

The Double Scissor Lift Table can safely handle loads up to 1,760 lbs, making it suitable for heavy-duty material handling in warehouses, workshops, production areas, and distribution facilities.

The double-scissor design raises the platform to a maximum height of approximately 59 inches, providing greater vertical reach than a standard single-scissor lift table.

The table uses a hydraulic foot-pedal system for lifting. The operator pumps the pedal to raise the platform and uses the release control to lower it smoothly and safely

Yes. It features brake-equipped casters that allow smooth movement while helping keep the lift table securely positioned during loading, unloading, and lifting operations
